ATEN VS0801H video switch HDMI
Part number VS0801H
8 PORT HDMI SWITCH W/120V ADP.
- Allows up to eight HDMI sources to be connected to one HDMI display
- Quick and easy switching between HDMI sources via front panel pushbuttons or IR remote control
- Built-in bi-directional RS-232 serial port for high-end system control *
- Supports Dolby True HD and DTS HD Master Audio
- Up to 60 Hz refresh rate
- Long-distance transmission - up to 15 m (24 AWG)
- Superior video quality - HDTV resolutions of 480p, 720p, 1080i, 1080p (1920x1080); VGA, SVGA, SXGA, UXGA, and WUXGA (1920x1200)
- HDMI (3D, Deep Color)
- Plug-and-play - no software installation required
- DDC compatible
- HDCP 1.4 compatible
- Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
- Manufacturer
- ATEN
- Part number
- VS0801H
- Condition
- New
- Category
- Input & Output Devices › Switches & Hubs
Overview
With more and more HDMI devices entering the Home Theater market, the need for simultaneous access to different HDMI A/V sources is becoming increasingly important. Now, the VS0801H 8-port HDMI Switch offers an easy and affordable way to add HDMI capabilities to your home theater system by allowing you to switch easily between up to eight HDMI A/V sources (such as an HD camcorder or satellite box, HD-DVD player, hi-def Blu-ray player, home theater PC, stand-alone streaming media player, gaming console, etc.) that are connected to your HDMI display.

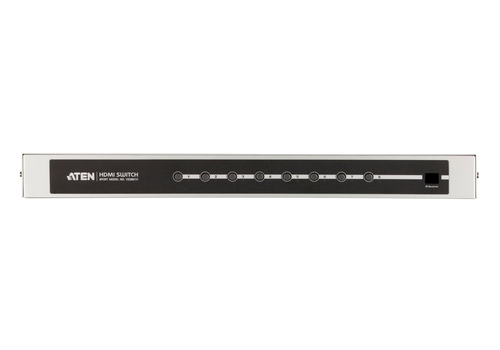

The remote control and convenient front panel pushbuttons allow you to quickly and easily toggle between HDMI sources, while the front panel LEDs indicate the source device at a glance. Furthermore, for complete system and install integration, RS-232 control is standard through the VS0801H's built-in bi-directional RS-232 serial remote port that allows the switch to be controlled through a high-end controller, PC, and/or home automation/home theater software package.
Specifications
| Video port type | HDMI |
|---|---|
| HDMI ports quantity | 9 |
| HDMI version | 1.4 |
| HDMI in | 8 |
| Number of HDMI outputs | 1 |
| RS-232 ports | 1 |

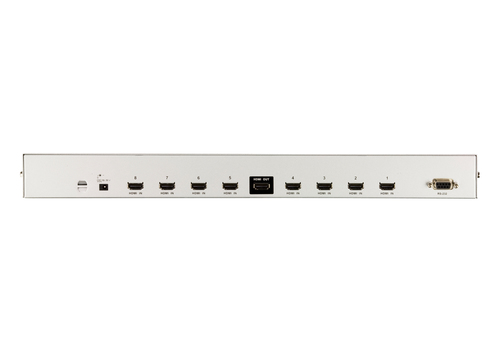

| Video in | 8 x HDMI Type A Female (Black) |
| Video out | 1 x HDMI Type A Female (Black) |
| DC-in jack | Yes |
| Material | Metal |
|---|---|
| Product colour | Black, Silver |
| Plug and Play | Yes |
| HDCP | Yes |
| Maximum refresh rate | 60 Hz |
| Maximum operating distance | 15 m |
| Rack mounting | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 480 (WVGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Supported video modes | 480p, 720p, 1080i, 1080p |
| Bandwidth | 6.75 Gbit/s |
| Bandwidth | 225 MHz |
| Maximum resolution | 1920 x 1080 pixels |
| 3D | Yes |
| HD type | Full HD |
| Dolby technologies | DTS-HD Master Audio, Dolby TrueHD |
| Input impedance | 100 Ω |
| Output impedance | 100 Ω |
| Power consumption (typical) | 3.71 W |
|---|
| Width | 437 mm |
|---|---|
| Depth | 159.8 mm |
| Height | 44 mm |
| Weight | 1.75 kg |
| Depth (imperial) | 16 cm (6.29") |
| Height (imperial) | 4.39 cm (1.73") |
| Width (imperial) | 43.7 cm (17.2") |
| Remote control included | Yes |
|---|---|
| User guide | Yes |
| AC adapter included | Yes |
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Compliance certificates | RoHS |
|---|
| Harmonized System (HS) code | 85176990 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
