ATEN

ATEN VS0110HA video splitter HDMI

Part number VS0110HA

10-PORT 4K HDMI SPLITTER

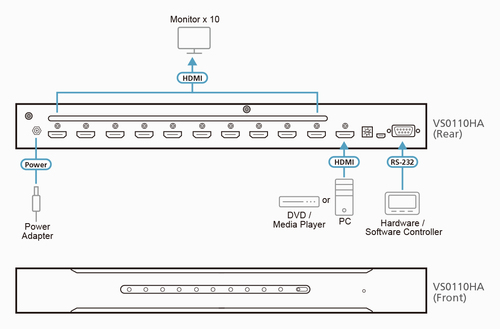

Connects one HDMI source to up to ten HDMI displays at the same time
HDMI (3D, Deep color, 4K); HDCP 1.4 compliant
Superior video quality – up to 4K resolutions (4096 x 2160 @ 60Hz; 4:2:0)
Long distance transmission from source to output - up to 15 m
Built-in bi-directional RS-232 serial control port for high-end system control
Supports Dolby True HD and DTS HD Master Audio
Clear LED indication of device status
EDID Expert™ – Selects optimum EDID settings for smooth power-up, high quality display and use of the best resolution across different screens
Plug-and-play
Rack-mountable (1U design)

Manufacturer: ATEN
Part number: VS0110HA
Condition: New
Category: Audio/Video Devices › Home Stereo/Theater Equipment
1GPA category: Hardware

Overview

The VS0110HA 4K HDMI Splitter is a perfect solution for applications that require sending one source of high-definition 4K video to ten displays at the same time. The HDMI interface caters to most mainstream sources and sinks, such as DVD players, satellite set-top boxes, and any HDMI displays. Featuring ATEN EDID technology, the VS0110HA guarantees continuous EDID communication with connected devices and maintains optimum video outputs.

The VS0110HA 4K HDMI Splitter is HDCP (High-bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.

Specifications

Ports & interfaces
Video port type	HDMI
Video in	1
HDMI version	1.4
Video ports quantity	10
Serial ports quantity	1
DC-in jack	Yes

Features
Product colour	Black
Housing material	Metal
Full HD	Yes
3D	Yes
Maximum operating distance	15 m
Bandwidth	340 MHz
Rack mounting	Yes
HDCP	Yes
Power LED	Yes
Plug and Play	Yes
Supported video modes	1080p
LED indicators	Link, Power
Certification	FCC, CE

Power
AC input voltage	5 V
Power consumption (typical)	4.34 W

Weight & dimensions
Dimensions (WxDxH)	157.8 x 437.2 x 44 mm
Weight	2.1 kg

Packaging content
Manual	Yes
User guide	Yes
AC adapter included	Yes

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	20 - 60 °C
Operating relative humidity (H-H)	0 - 80%

Technical details
Technical features	1x RS233, 1x Micro USB, 1x DC IN, 1x HDMI In, 10x HDMI Out
Maximum video resolution	4096 x 2160 pixels
Compliance certificates	RoHS

Logistics data
Harmonized System (HS) code	85176990
