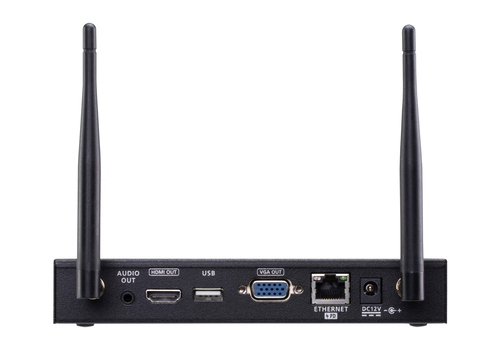

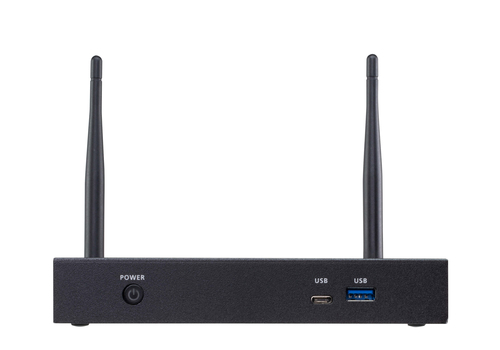

ATEN VP2020 wireless presentation system HDMI + VGA (D-Sub) Desktop
Part number VP2020
4K WRLS PRESENTATION SWITCH PBP
- Manufacturer
- ATEN
- Part number
- VP2020
- Term
- Per Ingram SKU 09TR99
- Condition
- New
- Category
- Input & Output Devices › Switches & Hubs
- 1GPA category
- Hardware
Specifications
| Form factor | Desktop |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Power |
| Maximum resolution (VGA) | 1920 x 1080 pixels |
|---|---|
| Maximum resolution (HDMI) | 4096 x 2160 pixels |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160 |
| AirPlay mirroring | Yes |
| Google Cast | Yes |
| Number of simultaneously connected devices (max) | 2 |
| Web-based management | Yes |
|---|---|
| On/off switch | Yes |
| Antenna type | External |
|---|---|
| Antennas quantity | 2 |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
|---|---|
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Frequency band | 2.4/5 GHz |
| Security algorithms | WEP, WPA, WPA2, WPA2-PSK |
| Maximum operating distance | 30 m |
| Interface | HDMI + VGA (D-Sub) |
|---|---|
| Number of HDMI outputs | 1 |
| VGA (D-Sub) output ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Power source type | DC |
|---|---|
| Input voltage | 12 V |
| Power consumption (typical) | 12 W |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | -20 - 60% |
| Storage temperature (T-T) | 0 - 80 °C |
| Width | 104 mm |
|---|---|
| Depth | 170 mm |
| Height | 28.3 mm |
| Weight | 470 g |
| Package weight | 1.15 kg |
| AC adapter included | Yes |
|---|---|
| Quick start guide | Yes |
| Country of origin | Taiwan |
|---|---|
| Products per master (outer) case | 5 pc(s) |
| Master (outer) case gross weight | 6.37 kg |
| Master (outer) case length | 500 mm |
| Master (outer) case width | 232 mm |
| Master (outer) case height | 283 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
