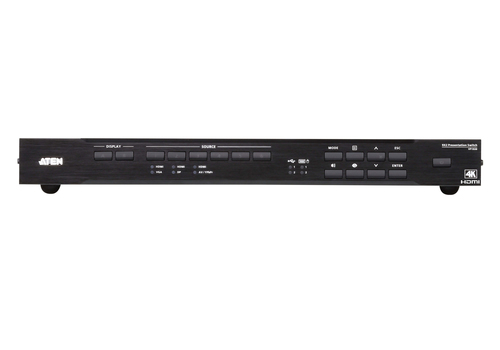

ATEN VP1920 video switch
Part number VP1920
9 X 2 4K PRESENTATION MATRIX SWITCH
- Multi-format AV Switching with Simplicity
- Supports multi-format 9 Inputs and 2 HDMI outputs:
- • 3 combo inputs (HDMI/VGA, HDMI/DisplayPort, HDMI/AV/YPbPr)
- • 3 HDMI inputs
- • 2 HDMI outputs
- VGA port supports universal analog input formats (RGBHV/RGBs/YCbCr/YPbPr)
- Embed/De-embed Audio–HDMI/DisplayPort audio signals can be extracted to digital/analog audio signals; stereo / composite/component audio can be embedded to digital audio signals
- High-definition Video with Optimum Output
- Superior video quality up to 4096 x 2160@60Hz (4:2:0) / 4096 x 2160@30Hz (4:4:4) (HDMI/DP)
- EDID Expert™ - automatically selects the optimum EDID settings for smooth power-up, high-quality display, and the best video resolution across connected devices
- HDMI (3D, Deep Color, 4K); HDCP 1.4 compliant
- Versatile, Streamlined Operation
- Manufacturer
- ATEN
- Part number
- VP1920
- Condition
- New
- Category
- Input & Output Devices › Switches & Hubs
Overview
The ATEN VP1920 is a 3-in-1 presentation switch that integrates a video matrix switch, an audio processor, and analog-to-digital converter functions. With nine multi-format inputs to two HDMI 4K outputs, it is designed to boost the efficiency and impact of professional presentations.

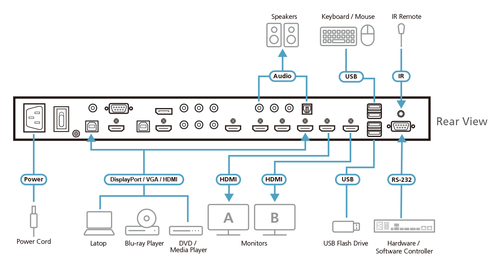

With streamlined control from front panel pushbuttons, IR remote controller, OSD, and RS-232, the VP1920 reduces not only system device count, but also lower operation complexity. It is suitable for all small-to-medium sized corporate and education presentation environments, such as meeting rooms, classrooms, training rooms, or any other presentation setting, such as in exhibition centers or hotels.
Specifications

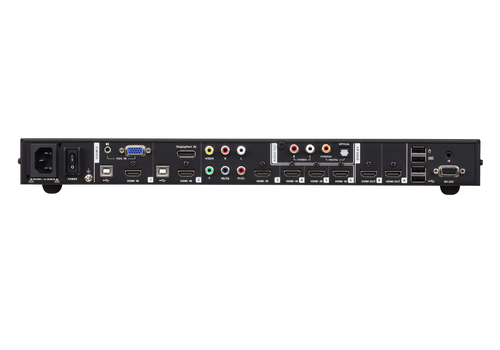

| HDMI ports quantity | 8 |
|---|---|
| HDMI in | 6 |
| Number of HDMI outputs | 2 |
| VGA (D-Sub) ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| DisplayPorts quantity | 1 |
| Audio (L/R) in | 2 |
| Audio (L/R) out | 2 |
| Digital audio coaxial out | 1 |
| Composite video in | 1 |
| Component video (YPbPr/YCbCr) in | 1 |
| 3.5 mm (1/8-inch) in | Yes |
| RS-232 ports | 1 |
| Material | Metal |
|---|---|
| Product colour | Black |
| Consumer Electronics Control (CEC) support | Yes |
| Extended display identification data (EDID) | Yes |
| HDCP | Yes |
| Maximum operating distance | 15 m |
| Rack mounting | Yes |
| Supported graphics resolutions | 1920 x 1200 (WUXGA), 3840 x 2160, 4096 x 2160 |
| LED indicators | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Built-in speaker(s) | No |
| Remote control type | IR |
| 3D | Yes |
| HD type | 4K Ultra HD |
| Rack capacity | 1U |
| Heat dissipation | 60 BTU/h |
| HDCP version | 1.4 |
| AC input voltage | 100 - 240 V |
|---|---|
| AC adapter frequency | 50 / 60 Hz |
| AC adapter input current | 1 A |
| Power consumption (typical) | 7.3 W |
| Width | 437.2 mm |
|---|---|
| Depth | 163.6 mm |
| Height | 44 mm |
| Weight | 2.36 kg |
| Quantity per pack | 1 pc(s) |
|---|---|
| Power cord included | Yes |
| Remote control included | Yes |
| User guide | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Compliance certificates | RoHS |
|---|
| Harmonized System (HS) code | 85176990 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
