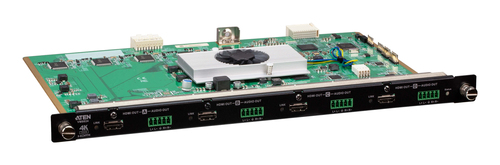

ATEN 4-Port True 4K HDMI Output Board with Scaler

Part number VM8824

4PORT TRUE 4K HDMI OUTPUT CARD

Compatible with the VM Modular Matrix Switches; mix and match with modular I/O boards of any type for optimum flexibility
True 4K Resolutions – handles uncompressed video resolutions up to 3840 x 2160 / 4096 x 2160 @ 60Hz (4:4:4)*
4K Scaler – features a video scaling function to integrate a video wall seamlessly with various output video resolutions
Seamless Switch™ – features close-to-zero second switching that provides continuous video streams, real-time switching and stable signal transmissions*
Video Wall – allows you to create custom video wall layouts via intuitive web GUI*
True 4K EDID Expert – selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolution across different screens
FrameSync – prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate
Audio-enabled, HDMI audio can be extracted and stereo audio can be embedded
Cable Quality Tester – examines the HDMI cable quality
HDMI (3D, Deep Color, 4K); HDCP 2.2 Compatible
Consumer Electronics Control (CEC) support

Manufacturer: ATEN
Part number: VM8824
Condition: New
Category: Input & Output Devices › Switches & Hubs

Overview

The VM8824 is a True 4K HDMI output board that works with an ATEN Modular Matrix Switch to offer an easy way to route 4 analog/digital audio/video sources to 4 HDMI displays with True 4K high-definition images support. In addition to the HDMI interface that carries digital A/V signal, the VM8824 also provides 4 stereo audio output ports that enable HDMI audio extraction.

Considering video wall applications always require fast video switching and resolution adaptation, the VM8824 supports Seamless Switch™ technology that provides real-time video switching, a built in 4K scaler that handles different video resolutions, and the EDID Expert technology for fast smooth switching between displays. All of ATEN’s VM series input/output boards support hot-swappable installation that gives system integrators great flexibility and efficiency for maintenance. The VM series input/output boards along with ATEN Modular Matrix Switches offer ideal solutions that perfectly meet your demands for multi-interface video applications.

Specifications

Design
Product type	Input board
Product colour	Black, Green
Material	Metal
Compatibility	Aten VM3250, VM0404HB, VM0808HB

Ports & interfaces
HDMI ports quantity	4

Power
Power consumption (typical)	38.97 W

Weight & dimensions
Width	238 mm
Depth	352 mm
Height	233 mm
Weight	650 g

Packaging data
Package width	285 mm
Package depth	426 mm
Package height	57 mm
Package weight	1 kg

Packaging content
Quick start guide	Yes

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 80%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	0 - 80%

Logistics data
Products per master (outer) case	2 pc(s)
Master (outer) case gross weight	2.5 kg
Master (outer) case length	440 mm
Master (outer) case width	300 mm
Master (outer) case height	138 mm
Master (outer) case net weight	1.3 kg

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
