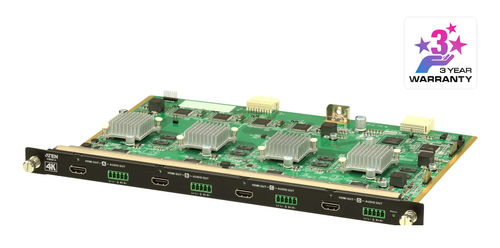

ATEN VM8814 matrix switch accessory
Part number VM8814
4PORT 4K HDMI OUTPUT CARD
- 4-port HDMI Output Board that is compatible with the VM1600/VM3200 and can be mixed with modular I/O boards of any type for optimum flexibility
- Superior video quality – HDTV resolutions of 480p, 720p, 1080i and 1080p (1920 x 1080); 4K2K@60 (4:2:0)
- Audio-enabled, HDMI audio can be extracted
- 4K Scaler –features a video scaling function to convert input resolutions to the optimum display resolutions
- Seamless Switch™ –features close-to-zero second switching that provides continuous video streams, real-time switching, and stable signal transmissions*
- Video Wall –allows you to create custom video wall layouts via an intuitive web GUI*
- EDID Expert –selects optimum EDID settings for smooth power-up and the highest quality display
- HDMI (3D, Deep Color); HDCP 2.2 Compatible
- Cable Quality Tester – examines the HDMI cable quality
- FrameSync –prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate
- Consumer Electronics Control (CEC) support
- Manufacturer
- ATEN
- Part number
- VM8814
- Condition
- New
- Category
- Audio/Video Devices › Home Stereo/Theater Equipment
Overview
The VM8814 is a 4K HDMI output board that works with an ATEN Modular Matrix Switch to offer an easy way to route 4 HDMI sources to 4 displays. In addition to the HDMI interface that carries digital A/V signals, the VM8814 is equipped with 4 stereo audio output ports that allow HDMI audio extraction.
Considering the need for fast video switching and resolution adaptation in video wall applications, the VM8814 supports Seamless Switch™ and EDID Expert™ that make real-time video switching possible, and contains a built-in 4K scaler that handles different video resolutions. The ATEN VM input/output boards support hot-swappable installation that gives system integrators great flexibility and efficiency for maintenance. The ATEN VM input/output boards along with ATEN Modular Matrix Switches offer ideal solutions that perfectly meet your demands for video-critical applications.
Specifications
| Product type | Input board |
|---|---|
| Product colour | Black, Green |
| Material | Metal |
| HDMI ports quantity | 4 |
|---|
| Power consumption (typical) | 20 W |
|---|
| Width | 238 mm |
|---|---|
| Depth | 352 mm |
| Height | 233 mm |
| Weight | 650 g |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
