ATEN VM8804 matrix switch accessory
Part number VM8804

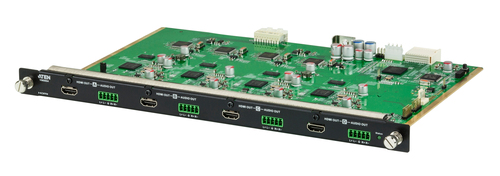

4PORT HDMI OUTPUT CARD
- 4-port HDMI Output Board that is compatible with the VM1600/VM3200 and can be mixed with modular I/O boards of any type for optimum flexibility
- Superior video quality – HDTV resolutions of 480p, 720p, 1080i and 1080p (1920 x 1080)
- HDMI (3D, Deep Color); HDCP 1.4 Compatible
- Seamless Switch™– provides continuous video streams, realtime switching and stable signal transmission*
- Built-in scaler on each output port to support the scaling function for different video Resolutions
- Consumer Electronics Control (CEC) support
- EDID Expert – selects optimum EDID settings for smooth power-up and the highest quality display
- Built-in EDID wizard – provides an easy way to customized EDID settings
- Hot-swappable design for easy integration of I/O boards
- Audio-enabled, HDMI audio can be extracted and stereo audio can be embedded
- Manufacturer
- ATEN
- Part number
- VM8804
- Condition
- New
- Category
- Audio/Video Devices › Home Stereo/Theater Equipment
Overview
The VM8804 4-Port HDMI Output Board offers an easy way to route any of audio/video sources to any of 4 displays, in combination with an ATEN Modular Matrix Switch.
The VM8804 supports Seamless Switch™ technology that provides video switching in real-time, a built in scaler that handles different video resolutions, and EDID Expert technology for fast smooth switching between displays, giving you the perfect viewing experience. The VM8804 also supports HDMI audio can be extracted and stereo audio that can be embedded.
Specifications
| Product type | Input board |
|---|---|
| Product colour | Black, Green |
| Material | Metal |
| HDMI ports quantity | 4 |
|---|
| DC input voltage | 5 V |
|---|---|
| Power consumption (typical) | 23.13 W |
| Width | 238 mm |
|---|---|
| Depth | 352 mm |
| Height | 22.8 mm |
| Weight | 580 g |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
