Products › Audio/Video Devices
ATEN

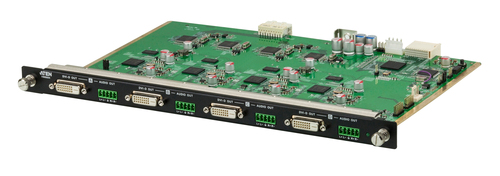

ATEN VM8604 matrix switch accessory
Part number VM8604
4PORT DVI OUTPUT CARD
- 4-port DVI Output Board that is compatible with the VM1600/VM3200 and can be mixed with modular I/O boards of any type for optimum flexibility
- Superior video quality – up to 1920 x 1200 @ 60Hz
- HDCP 1.4 Compatible
- Seamless Switch™– provides continuous video streams, real-time switching and stable signal transmission
- Built-in scaler on each output port to support the scaling function for different video resolutions
- EDID Expert – selects optimum EDID settings for smooth power-up and the highest quality display
- Built-in EDID wizard – provides an easy way to customized EDID settings
- Hot-swappable design for easy integration of I/O boards
- Audio-enabled
- Manufacturer
- ATEN
- Part number
- VM8604
- Condition
- New
- Category
- Audio/Video Devices › Home Stereo/Theater Equipment
Overview
The VM8604 4-Port DVI Output Board is offers an easy way to route any of 4 audio/video sources to any of 4 displays, when used in combination with ATEN’s Modular Matrix Switch.
The VM8604 supports Seamless Switch™ technology that provides video switching in realtime, a built in scaler that handles different video resolutions, and EDID Expert technology for smooth switching between displays, giving you the perfect viewing experience.
Specifications
| Product type | Input board |
|---|---|
| Product colour | Black, Green |
| Material | Metal |
| DVI ports quantity | 4 |
|---|
| DC input voltage | 5 V |
|---|---|
| Power consumption (typical) | 20.1 W |
| Width | 238 mm |
|---|---|
| Depth | 352 mm |
| Height | 22.8 mm |
| Weight | 580 g |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
