Overview

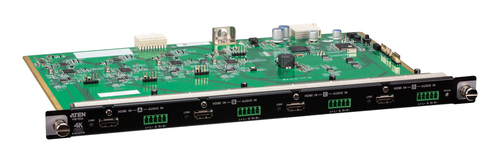

The VM7824 is a True 4K HDMI input board that works with an ATEN Modular Matrix Switch to offer an easy way to route 4 HDMI audio/video sources to 4 displays with True 4K high-definition images support. In addition to the HDMI interface that carries digital A/V signal, the VM7824 also provides 4 stereo audio input ports that enable stereo audio embedding.
All of ATEN’s VM series input/output boards support hot-swappable installation that gives system integrators great flexibility and efficiency for maintenance. The VM series input/output boards along with ATEN Modular Matrix Switches offer ideal solutions that perfectly meet your demands for multi-interface video applications.
Specifications
Design
| Product type | Input board |
|---|
| Product colour | Black, Green |
|---|
| Material | Metal |
|---|
| Compatibility | Aten VM3250, VM0404HB, VM0808HB |
|---|
Ports & interfaces
| HDMI ports quantity | 4 |
|---|
Power
| Power consumption (typical) | 8.95 W |
|---|
Weight & dimensions
| Width | 238 mm |
|---|
| Depth | 352 mm |
|---|
| Height | 233 mm |
|---|
| Weight | 550 g |
|---|
Packaging data
| Package width | 285 mm |
|---|
| Package depth | 426 mm |
|---|
| Package height | 57 mm |
|---|
| Package weight | 906 g |
|---|
Packaging content
| Quick start guide | Yes |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Operating relative humidity (H-H) | 0 - 80% |
|---|
| Storage temperature (T-T) | -20 - 60 °C |
|---|
| Storage relative humidity (H-H) | 0 - 80% |
|---|
Logistics data
| Products per master (outer) case | 2 pc(s) |
|---|
| Master (outer) case gross weight | 2.3 kg |
|---|
| Master (outer) case length | 440 mm |
|---|
| Master (outer) case width | 300 mm |
|---|
| Master (outer) case height | 138 mm |
|---|
| Master (outer) case net weight | 1.1 kg |
|---|
