Products › Audio/Video Devices

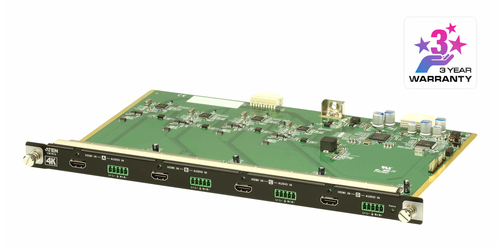

ATEN 4-Port 4K Input Board
Part number VM7814
4PORT 4K HDMI INPUT CARD
- 4-port 4K HDMI Input Board that is compatible with the VM1600/VM3200 and can be mixed with modular I/O boards of any type for optimum flexibility
- Superior video quality – HDTV resolutions of 480p, 720p, 1080i and 1080p (1920 x 1080); 4K2K@60 (4:2:0)
- Audio-enabled, stereo audio can be embedded
- EDID Expert – selects optimum EDID settings for smooth power-up and the highest quality display
- HDMI (3D, Deep Color); HDCP 2.2 Compatible
- Cable Quality Tester – examines the HDMI cable quality
- Consumer Electronics Control (CEC) support
- Manufacturer
- ATEN
- Part number
- VM7814
- Condition
- New
- Category
- Audio/Video Devices › Home Stereo/Theater Equipment
Overview
The VM7814 is a 4K HDMI input board that works with an ATEN Modular Matrix Switch to offer an easy way to route 4 HDMI sources to 4 displays. In addition to the HDMI interface that carries digital A/V signals, the VM7814 is equipped with 4 stereo audio input ports that allow stereo audio embedding.
The ATEN VM input/output boards support hot-swappable installation that gives system integrators great flexibility and efficiency for maintenance. The ATEN VM input/output boards along with ATEN Modular Matrix Switches offer ideal solutions that perfectly meet your demands for video-critical applications.
Specifications
| Product type | Input board |
|---|---|
| Product colour | Black, Green |
| Material | Metal |
| HDMI ports quantity | 4 |
|---|
| Power consumption (typical) | 4.45 W |
|---|
| Width | 238 mm |
|---|---|
| Depth | 352 mm |
| Height | 233 mm |
| Weight | 560 g |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
