ATEN VM0404HA video switch HDMI

Part number VM0404HA

4X4 4K HDMI MATRIX SWITCH

Connects any of 4 HDMI sources to any of 4 HDMI displays
Supports 4K resolutions up to UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0)
EDID Expert™ – selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution across different screens

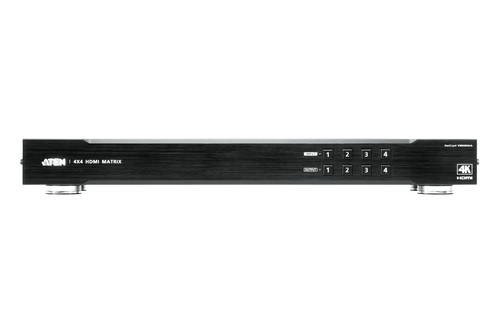

Multiple Control Methods – system management via front-panel pushbuttons, IR remote and RS-232 control
Supports Dolby True HD and DTS HD Master audio
Signaling rates up to 3.4 Gbits for fl awless 4K output
HDMI (3D, Deep Color, 4K) and HDCP 1.4 compatible
Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to a single remote control
Supports ATEN’s LockPro™ HDMI cable lock for secure HDMI cable connections
ESD protection for HDMI
Firmware upgradeable
Rack Mountable (1U design)

Manufacturer: ATEN
Part number: VM0404HA
Condition: New
Category: Audio/Video Devices › Home Stereo/Theater Equipment

Overview

The ATEN VM0404HA 4x4 4K HDMI Matrix Switch supports 4K resolutions of UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0). Ready for the future of highdefinition video switching, the VM0404HA is ideal for applications where the routing of 4K digital signals is required, such as in classrooms, auditoriums, department stores and more.

The VM0404HA matrix switch offers an easy and affordable way to route any of 4 HDMI video sources to any of 4 HDMI displays and can be operated through front-panel pushbuttons, IR remote and RS-232 control, ensuring optimum viewing and control of high-definition video.

Specifications

Ports & interfaces
Video port type	HDMI
HDMI ports quantity	8
HDMI in	4
Number of HDMI outputs	4
RS-232 ports	1

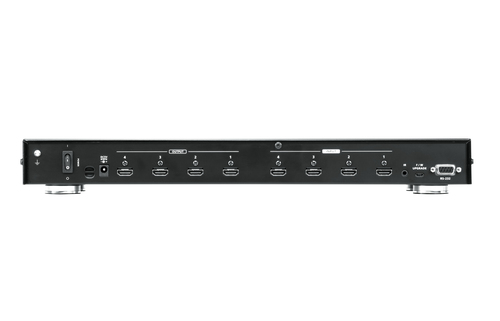

Video in	4 x HDMI Type A Female (Black)
Video out	4 x HDMI Type A Female (Black)
DC-in jack	Yes

Features
Material	Metal
Product colour	Black
HDCP	Yes
Maximum refresh rate	60 Hz
Maximum operating distance	15 m
Rack mounting	Yes
Supported graphics resolutions	3840 x 2160, 4096 x 2160
Supported video modes	2160i, 2160p
Bandwidth	10.2 Gbit/s
Bandwidth	340 MHz
Maximum resolution	4096 x 2160 pixels
3D	Yes
Input impedance	100 Ω
Output impedance	100 Ω

Power
Power consumption (typical)	10.58 W

Weight & dimensions
Width	437.2 mm
Depth	162.9 mm
Height	44 mm
Weight	2.02 kg

Packaging content
Remote control included	Yes
AC adapter included	Yes
Mounting brackets included	Yes
Plug adapter type	EU

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%

Technical details
Compliance certificates	RoHS

Logistics data
Harmonized System (HS) code	85176990
