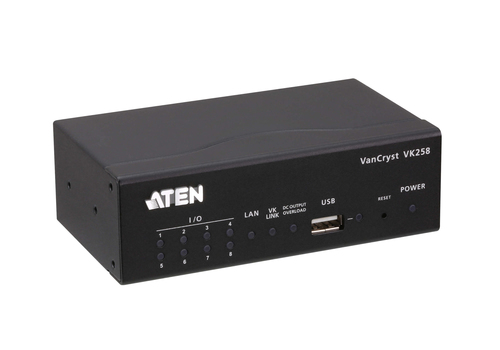

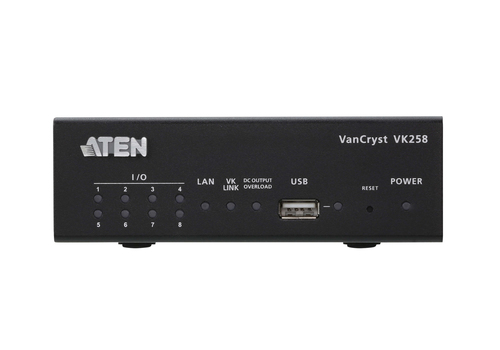

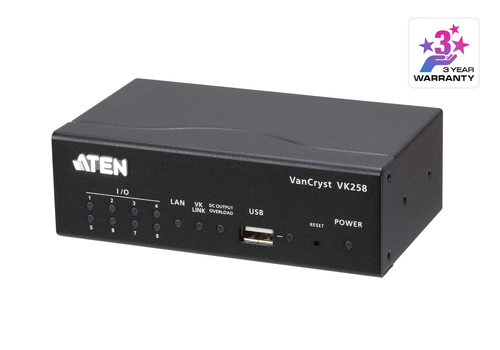

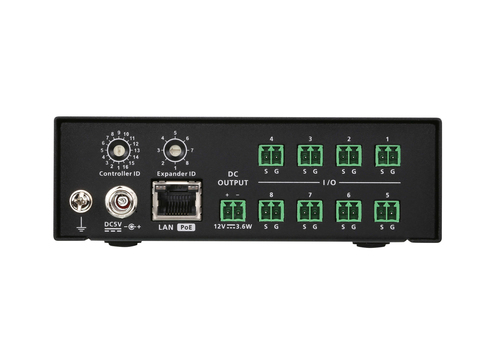

ATEN VK258 control processor
Part number VK258
8-PORT DIGITAL I/O EXPANSION BOX FOR VK CONTROL SYSTEM
- An Ethernet-to-digital I/O box ships with 8 channels of digital input / output
- Supports Power over Ethernet (PoE) or DC power supply
- WebUI provides VK258 system information, including firmware upgrade
- Supports Telnet CLI (command-line interface) mode for third-party system integration
- An expansion solution for connecting more digital I/O devices to ATEN Control System
- Flexible deployment via Ethernet connection
- Works with a connected ATEN controller with ID Switch through instant configuration
- Manufacturer
- ATEN
- Part number
- VK258
- Condition
- New
- Category
- Input & Output Devices › Serial/Parallel & Io
- 1GPA category
- Hardware
Overview
The VK258 provides Ethernet-to-digital I/O connectivity with 8 channels of digital input/output. It allows users to remotely access digital input / output devices from a PC or any system located anywhere. The complete Telnet CLI commands are fully integrated into users’ commercial and industrial applications.
What’s more, the VK258 serves as a flexible expansion box of the ATEN Control System, enabling users to control more digital I/O devices, such as various sensors, dry contact devices, PCs, and motor-driven devices in environments where more devices need to be centrally controlled. With the advantage of Ethernet-based connection, the expansion box can be easily connected to controllers via LAN connection from a variety of locations across a network.
Specifications
| Product colour | Black |
|---|---|
| Housing material | Metal |
| Reset button | Yes |
| Built-in display | No |
| Number of relay pins | 2 |
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Supported network protocols | ICMP, TCP/IP, DHCP, HTTPS, SSH |
| USB port | Yes |
|---|---|
| USB ports quantity | 1 |
| USB port type | USB Type-A |
| DC-in jack | Yes |
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Power consumption (max) | 2.75 W |
|---|---|
| Power consumption (typical) | 2.2 W |
| Power supply location | External |
| DC output voltage | 12 |
| Terminal block included | Yes |
|---|---|
| Manual | Yes |
| Width | 75.8 mm |
|---|---|
| Depth | 130 mm |
| Height | 42 mm |
| Weight | 460 g |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
