Overview

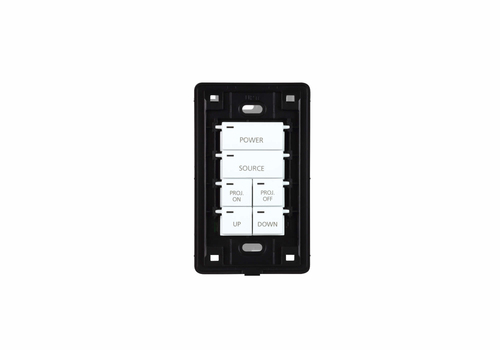

The VK108US is a fully-customizable 8-button keypad designed for use with the ATEN Control System. The keypad provides an interface to control devices in a room from a standard wall mounted faceplate. Created with flexibility in mind, the one-gang keypad can be laid out in 14 different combinations of 4 to 8 buttons that snap together as easy as Lego’s. By connecting to the VK2100/VK1100 Control Box over a LAN, users will find it’s effortless using VK6000 software to configure the desired control of any connected device from the keypad. With the button’s ready to go, you have instant and smart control of the facilities from a keypad or keypads that can manage any device in the room. The VK108US is an affordable solution, perfect to serve as the primary interface in small meeting rooms, or as secondary device control in classrooms and conference centers.
Specifications
Features
| Product type | Remote control |
|---|
| Product colour | White |
|---|
| Placement supported | Wall |
|---|
| Ethernet LAN | Yes |
|---|
| Ethernet LAN data rates | 10,100 Mbit/s |
|---|
| Wall mountable | Yes |
|---|
| Compatible products | VK2100/VK1100 |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| DC-in jack | Yes |
|---|
Power
| Power source type | DC |
|---|
| DC input voltage | 48 V |
|---|
| Power consumption (typical) | 1.58 W |
|---|
Weight & dimensions
| Width | 27.8 mm |
|---|
| Depth | 45.8 mm |
|---|
| Height | 15.3 mm |
|---|
| Weight | 130 g |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|
| Operating relative humidity (H-H) | 0 - 80% |
|---|
| Storage temperature (T-T) | -20 - 60 °C |
|---|
Packaging content
| Quantity | 1 |
|---|
