ATEN VE901 AV extender AV transmitter & receiver Black
Part number VE901
DISPLAYPORT HDBASET-LITE EXTENDER (4K@40M; 1080P@70M)
- HDBaseT Connectivity – extends a DisplayPort connection up to 70 meters via a single Cat 6a cable or ATEN 2L-2910 Cat 6 cable
- DisplayPort v1.1*; HDCP 1.4 compliant
- Superior video quality – 4K @ 35 m (Cat 5e/6) / 40 m (Cat 6a/ATEN 2L-2910 Cat 6 cable) and 1920 x 1080 @ 60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat 6 cable)
- HDBaseT Anti-Jamming – resists signal interference during video transmission using HDBaseT technology
- Featuring 3.3V / 500mA power output for powering auxiliary devices
- Plug-and-play
- Rack-Mountable
- *Note:
- DisplayPort v1.1 supports up to 4Kx2K @ 30Hz.
- Manufacturer
- ATEN
- Part number
- VE901
- Condition
- New
- Category
- Input & Output Devices › Switches & Hubs
Overview

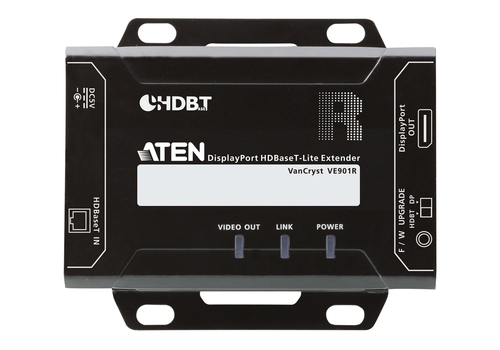

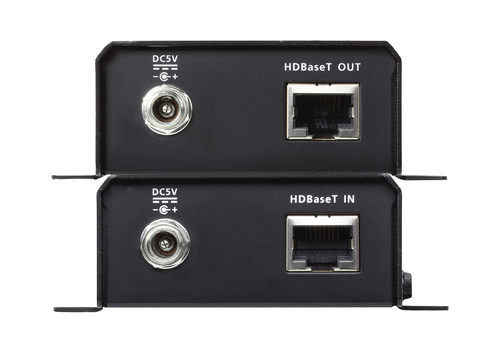

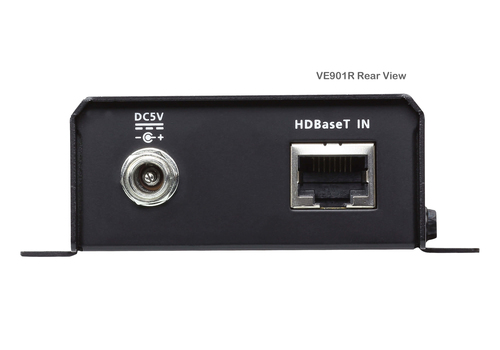

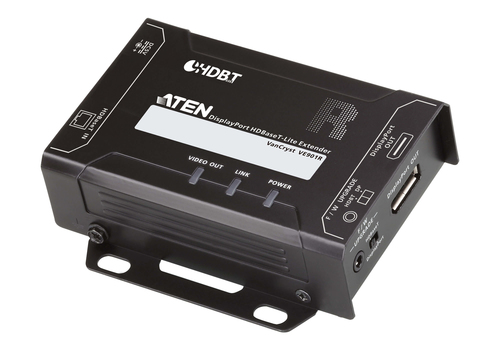

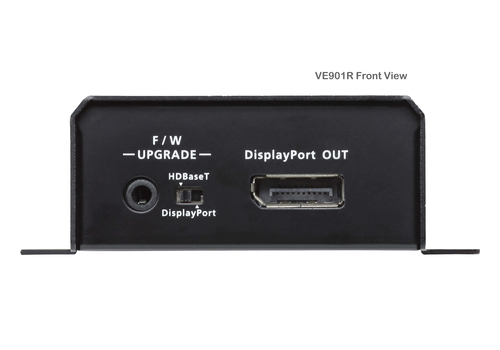

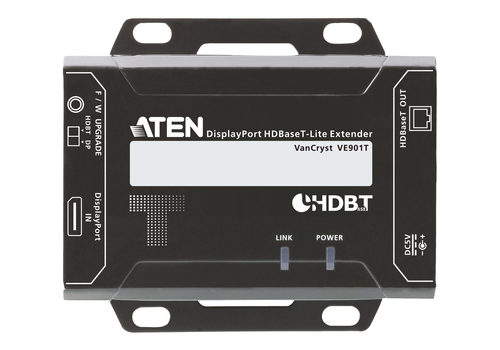

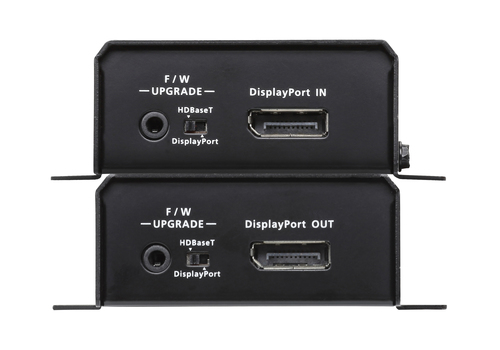

The VE901 DisplayPort HDBaseT-Lite Extender is able to extend a DisplayPort display up to 70 m using a Cat 6/6a/ATEN 2L-2910 Cat 6 cable. This combination of ATEN and HDBaseT™ technology supports sharing 4K media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.
The VE901 DisplayPort HDBaseT-Lite Extender is the perfect solution for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight and easy-to-mount design, and a slip-resistant DC Jack lock mechanism, the VE901 can be installed in a multitude of locations while ensuring peace of mind with its reliability.
Specifications
| Type | AV transmitter & receiver |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Maximum transfer distance | 1.5 m |
| LED indicators | Link, Power |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| HDCP | Yes |
| Material | Metal |
| Impedance | 100 Ω |
| Product colour | Black |
| HDBaseT port | Yes |
|---|---|
| DC-in jack | Yes |
| Operating voltage | 5 V |
|---|---|
| Power consumption (transmitter) (max) | 3.13 W |
| Power consumption (receiver) (max) | 7.95 W |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Dimensions (WxDxH) | 87 x 103 x 30 mm |
|---|---|
| Weight | 250 g |
| AC adapter included | Yes |
|---|---|
| Manual | Yes |
