ATEN VE8952T AV extender AV transmitter Black
Part number VE8952T
4K HDMI OVER IP POE EXTENDER TRANSMITTER

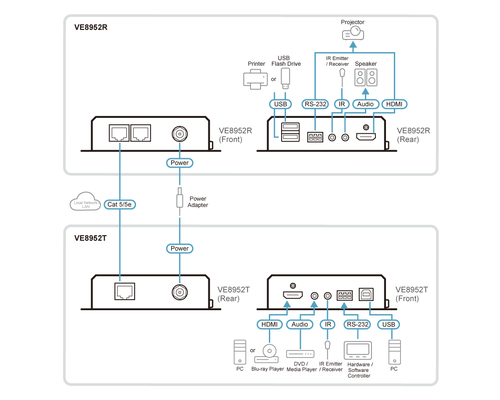

- Extends AV connections from a simple point-to-point to a multi-point to multi-point setup via LAN
- Delivers visually lossless high-quality video up to 4K @ 30 Hz 4:4:4
- Daisy Chaining - Connects multiple displays through a single port
- Video Wall Support
- Manufacturer
- ATEN
- Part number
- VE8952T
- Condition
- New
- Category
- Input & Output Devices › Switches & Hubs
Overview
>
*If you experience issues related to your network architecture, please contact ATEN representatives for support. If you experience issues related to your network architecture, please refer VE89 Implementation guide or contact ATEN representatives for support.
Specifications
| Type | AV transmitter |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Maximum transfer distance | 100 m |
| Maximum refresh rate | 60 Hz |
| Extended display identification data (EDID) | Yes |
| LED indicators | Yes |
| HDCP | Yes |
| Material | Metal |
| Rack mounting | No |
| Impedance | 100 Ω |
| Daisy chain | Yes |
| Product colour | Black |
| Connectivity technology | Wired |
|---|---|
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| USB ports quantity | 1 |
| USB connector type | USB Type-B |
| RS-232 input ports | 1 |
| Serial ports quantity | 1 |
| Serial interface type | RS-232 |
| Remote (IR) input | 1 |
| DC-in jack | Yes |
| Operating voltage | 5 V |
|---|---|
| External power adapter | Yes |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Width | 166 mm |
|---|---|
| Depth | 124.9 mm |
| Height | 29 mm |
| Weight | 670 g |
| AC adapter included | Yes |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
