ATEN VE8950T AV extender AV transmitter Black
Part number VE8950T
4K HDMI OVER IP EXTENDER TRANSMITTER
- Lightweight Compression with Ultra-low Latency Delivers visually lossless high-quality video up to 4K @ 30 Hz 4:4:4Ensures stunning quality video using ATEN advanced video lossless compression technologyEDID Expert™ selects the optimum EDID settings for smooth power-up, high-quality display and the best video resolution across different screensOffers different levels of video compression rate including Smooth, Balance, and High Quality for users to choose depending on practical usage
- Ensures stunning quality video using ATEN advanced video lossless compression technology
- EDID Expert™ selects the optimum EDID settings for smooth power-up, high-quality display and the best video resolution across different screens
- Offers different levels of video compression rate including Smooth, Balance, and High Quality for users to choose depending on practical usage
- Manufacturer
- ATEN
- Part number
- VE8950T
- Condition
- New
- Category
- Input & Output Devices › Switches & Hubs
Overview
The ATEN VE8950T Video over IP Transmitter delivers visually lossless 4K AV signals with low latency over long distance via a local network of standard Gigabit network switch*.
The VE8950T provides an effective, easy-to-use, and economical digital signage solution with the following features and advantages that directly address the challenges system integrators encounter when implementing AV over IP systems:

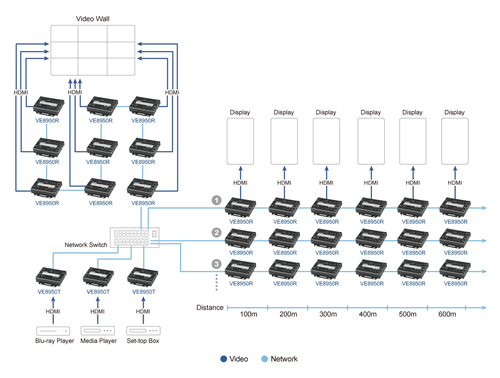

Engineered to meet today’s demands of large scale, multi-display, 4K signal transmission, and designed to be easy to set up and operate, the VE8950T Video over IP Transmitter is an ideal product for a wide range of environments, such as trade shows, airports, university campuses, conference centers, and shopping centers.
*Note: Regarding the detail information requirement of network switch, please refer to Implementation guide : assets.aten.com/product/manual/Implementation_Guide.pdf
Specifications
| Type | AV transmitter |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 100 m |
| Audio system | stereo |
| LED indicators | Yes |
| Supported video modes | 1080p |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| HDCP | Yes |
| Material | Metal |
| Control type | Buttons |
| Firmware upgradeable | Yes |
| Baud rate | 19.2 Kbit/s |
| Impedance | 100 Ω |
| Daisy chain | Yes |
| Product colour | Black |
| Connectivity technology | Wired |
|---|---|
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| USB ports quantity | 1 |
| USB version | 2.0 |
| USB connector type | USB Type-B |
| Video in | 1 |
| Audio input | 1 |
| Serial ports quantity | 1 |
| Serial interface type | RS-232 |
| Remote (IR) input | 1 |
| DC-in jack | Yes |
| Operating voltage | 5 V |
|---|---|
| Power consumption (typical) | 3.08 W |
| External power adapter | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Width | 136 mm |
|---|---|
| Depth | 101 mm |
| Height | 29.6 mm |
| Weight | 500 g |
| AC adapter included | Yes |
|---|---|
| Manual | Yes |
| Compliance certificates | RoHS |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
