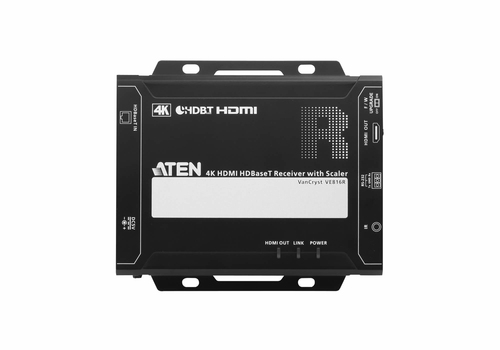

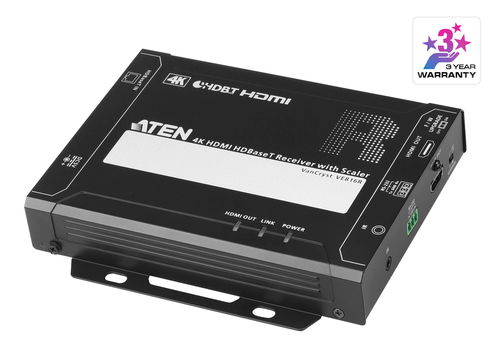

ATEN VE816R AV extender AV receiver Black
Part number VE816R
4K HDMI HDBASET RECEIVER WITH SCALER
- Extends HDMI, RS-232, and IR signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
- HDCP 2.2 compatible
- Superior video quality:
- • 4K up to 100 m
- • 1080p up to 150 m
- HDBaseT Long Reach Mode – activated by RS-232 commands, Long Reach Mode extends signals up to 150 m, 1080p, via a single Cat 5e/6 cable
- Scaler – scales videos of different resolutions to their optimal output for display and to avoid black screen*
- Video Wall – features video wall profiles that allows for custom screen layouts via an intuitive web GUI**
- Seamless Switch™ – close-to-zero second switching that provides continuous video streams, real-time switching, and stable signal transmissions**
- HDBaseT Anti-jamming – resists signal interference during high-quality video transmissions using HDBaseT technology

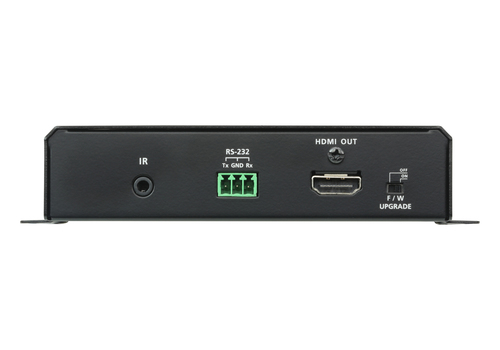

- Bi-directional RS-232 channel – allows for control using serial terminals or serial devices, such as touch screens and barcode scanners
- Bi-directional IR channel – IR transmission is processed one direction at a time***
- Manufacturer
- ATEN
- Part number
- VE816R
- Condition
- New
- Category
- Audio/Video Devices › Home Stereo/Theater Equipment
- 1GPA category
- Hardware
Overview
ATEN VE816R 4K HDMI HDBaseT Receiver with Scaler is designed to work with several ATEN HDBaseT Matrix Switches to extend 4K HDMI signals up to 100 m over a single Cat 5e/6/6a or an ATEN 2L-2910 Cat 6 cable, and at the same time, scales videos of different resolutions for optimal display.
Supporting bi-directional RS-232 channel and IR signaling pass-through, the VE816R provides users the path to remotely control the compatible devices. When working with ATEN HDBaseT Matrix, The VE816R features Frame Sync and Cable Quality Tester technologies to ensure smooth video and intuitive cable testing process.
When working with ATEN HDMI HDBaseT-Lite Matrix Switches, or Modular Matrix Switches with HDBaseT output boards, the VE816R supports video wall integration and ATEN’s Seamless Switch ™ function, providing users the ultimate A/V experiences.
Specifications
| Type | AV receiver |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 150 m |
| Electrostatic Discharge (ESD) protection | 15 kV |
| LED indicators | Yes |
| Supported video modes | 1080p |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| HDCP | Yes |
| Material | Metal |
| 3D | Yes |
| Firmware upgradeable | Yes |
| Plug and Play | Yes |
| Impedance | 100 Ω |
| Product colour | Black |
| HDBaseT certified | Yes |
| Connectivity technology | Wired |
|---|---|

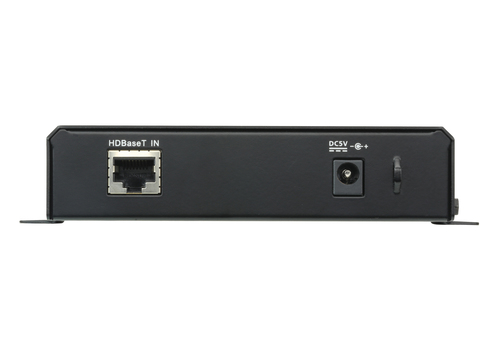

| RJ-45 input ports | 1 |
| Number of HDMI outputs | 1 |
| Serial ports quantity | 1 |
| Serial interface type | RS-232 |
| Remote (IR) input | 1 |
| DC-in jack | Yes |
| Operating voltage | 5 V |
|---|---|
| Power consumption (typical) | 9.09 W |
| External power adapter | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 124.9 mm |
|---|---|
| Depth | 166 mm |
| Height | 29 mm |
| Weight | 670 g |
| AC adapter included | Yes |
|---|---|
| Manual | Yes |
| IR blaster included | Yes |
| IR receiver included | Yes |
| Compliance certificates | RoHS |
|---|
