Products › Input & Output Devices
ATEN
ATEN HDMI Extender over 1 CAT5e/6 Cable (100m) ,4Kx2K, 3 level cascadable / HDBaseT
Part number VE812
HDMI OVER SINGLE CAT5 EXTENDER
- Extends the distance between HDMI source and HDMI display
- Implements HDBaseT extension technology using only one Cat 5e cable to connect the transmitter and receiver
- HDMI (3D, Deep Color, 4kx2k); HDCP Compatible
- Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
- Long distance transmission - up to 100m
- Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
- Supports up to 340MHz bandwidth for high performance video
- Supports Dolby True HD and DTS HD Master Audio
- Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15 KV)
- Manufacturer
- ATEN
- Part number
- VE812
- Condition
- New
- Category
- Input & Output Devices › Switches & Hubs
Overview

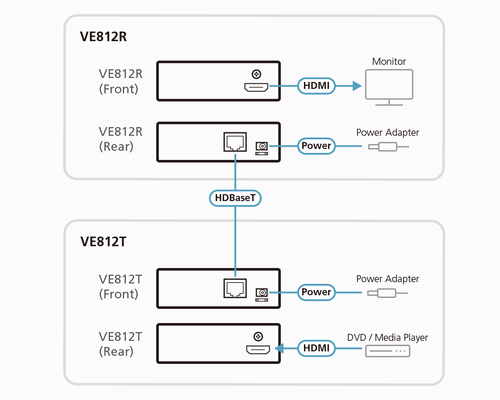

The VE812 HDMI HDBaseT Extender enables an HDMI display to be located up to 100 meters away from the source device. It can be conveniently extended using only one Cat 5e cable, which is cost-effective.
The VE812 supports HDMI (3D, Deep Color), Ultra HD (4k x 2k), and is HDCP compatible. Furthermore, the remote EDID pass-through ensures optimum video quality for any HDMI display.
The VE812 is perfect for the meeting room, home theater or any installation that needs long distance transmission and superior video quality.
Specifications
| Type | AV transmitter & receiver |
|---|---|
| Maximum resolution | 4000 x 2000 pixels |
| Cable types supported | Cat5e |
| Maximum transfer distance | 100 m |
| LED indicators | Yes |
| Supported video modes | 1080p |
| Product colour | Black |
| RJ-45 input ports | 1 |
|---|---|
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| DC-in jack | Yes |
| Operating voltage | 5.3 V |
|---|---|
| External power adapter | Yes |
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Receiver dimensions (WxDxH) | 103 x 141.7 x 30 mm |
|---|---|
| Receiver weight | 400 g |
| Transmitter dimensions (WxDxH) | 103 x 141.7 x 30 mm |
| Transmitter weight | 400 g |
| Compliance certificates | RoHS |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
