ATEN VE811R AV extender AV receiver Black
Part number VE811R
HDMI HDBASET RECEIVER UP TO 330FT 4K / 492FT 1080P REACH MODE
- HDBaseT connectivity – extends 4K HDMI signals up to 100m via a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
- Supports HDBaseT Long Reach Mode – up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p
- HDMI (3D, Deep Color, 4K)
- HDCP 2.2 compatible
- Supports resolutions of up to 4K and 1080p
- Consumer Electronic Control (CEC) allows interconnected HDMI devices to communicate and respond to a single remote control
- Supports wide screen format
- Plug and play – no software required
- Built-in 8kV / 15kV ESD protection
- Rack mountable
- Manufacturer
- ATEN
- Part number
- VE811R
- Term
- Per Ingram SKU 2PB559
- Condition
- New
- Category
- Audio/Video Devices › Home Stereo/Theater Equipment
Overview

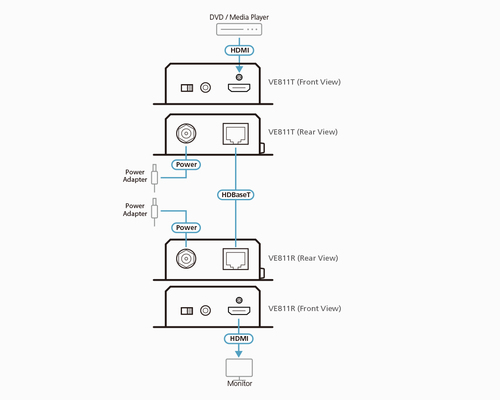

The ATEN VE811R HDMI HDBaseT Extender guarantees the optimum 4K HDMI signal transmission across up to100 m via a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. In addition, with the support for Long Reach Mode, it extends HDMI signals @ 1080p up to 150 m via a single Cat 5e/6 cable. The VE811R meets HDMI specification features including 3D, Deep Color, HD lossless audio formats and CEC pass-through. Plus, it supports Dolby Digital 5.1 and DTS HD audio.
Pushing the technology and design to the limit, the compact design makes the VE811R easy to mount in any location. Engineered for today’s digital trends, the VE811R is ideal for meeting rooms, or any setting that requires high quality HDMI video to be extended for great distances.
Specifications
| Type | AV receiver |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Bandwidth | 10.2 Gbit/s |
| HDCP | Yes |
| Material | Metal |
| 3D | Yes |
| Rack mounting | Yes |
| Firmware upgradeable | Yes |
| Consumer Electronics Control (CEC) support | Yes |
| Plug and Play | Yes |
| Impedance | 100 Ω |
| Product colour | Black |
| Connectivity technology | Wired |
|---|---|
| Ethernet LAN | Yes |
| Number of HDMI outputs | 1 |
| DC-in jack | Yes |
| Operating voltage | 5 V |
|---|---|
| Power consumption (typical) | 3.9 W |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Receiver dimensions (WxDxH) | 73 x 86.4 x 24.7 mm |
|---|---|
| Receiver weight | 170 g |
| Quantity | 1 |
|---|
