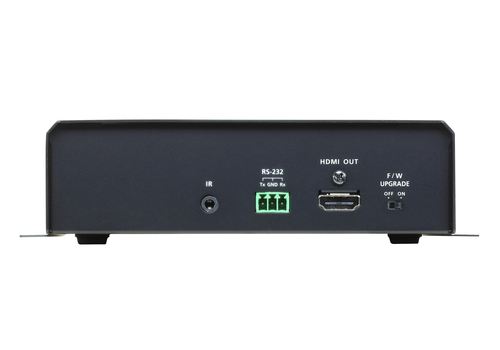

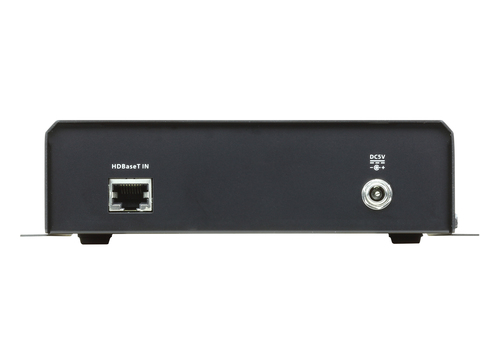

ATEN VE805R AV extender AV receiver Black
Part number VE805R
HDMI HDBASET-LITE RECEIVER WITH SCALER
- Extends HDMI, RS-232, and IR signals up to 70 m over a single Cat 5e/6/6a cable
- HDMI (3D, Deep Color) ; HDCP 1.4 compliant
- Superior video quality – 1080p@60m (Cat 5e/6); 70m (Cat 6a)
- Scaler – scales videos of different resolutions to their optimal output for display and to avoid black screen*
- Video Wall – features video wall profiles that allows for custom screen layouts via an intuitive web GUI**
- Seamless Switch™ – close-to-zero second switching that provides continuous video streams, real-time switching, and stable signal transmissions**
- HDBaseT Anti-jamming – resists signal interference during high-quality video transmissions using HDBaseT technology
- Bi-directional RS-232 channel – allows for control using serial terminals or serial devices, such as touch screens and barcode scanners
- Bi-directional IR channel – IR transmission is processed one direction at a time***
- Firmware upgradeable
- Built- in 8KV / 15 KV ESD protection
- Plug-and-play
- Manufacturer
- ATEN
- Part number
- VE805R
- Condition
- New
- Category
- Input & Output Devices › Switches & Hubs
Overview
The VE805R HDMI HDBaseT-Lite Receiver with Scaler can be combined with ATEN HDMI HDBaseT products to extend your HDMI display up to 60 m from your HDMI source device using a single Cat 5e/6a cable.
With a built-in scaler, the VE805R supports scaling the display of different video resolutions. When combined with the ATEN VM8514 HDBaseT Output Board, it supports video wall integration and Seamless Switch™ functions. In addition, the VE805R is equipped with RS-232 and IR signaling pass-through, which allows RS-232 and IR channels to be controlled either from the remote to local unit or from the local to remote unit, for bi-directional control of the source or display device.
Specifications
| Type | AV receiver |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat5e, Cat6a |
| Maximum transfer distance | 60 m |
| Supported video modes | 1080p |
| HDCP | Yes |
| Impedance | 100 Ω |
| Product colour | Black |
| HDBaseT certified | Yes |
| HDBaseT port | Yes |
|---|---|
| HDMI in | 1 |
| RS-232 input ports | 1 |
| DC-in jack | Yes |
| Operating voltage (receiver) | 5 V |
|---|
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Receiver dimensions (WxDxH) | 169.2 x 177.4 x 42 mm |
|---|---|
| Receiver weight | 810 g |
| Compliance certificates | RoHS |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
