ATEN VE802T AV extender AV transmitter Black
Part number VE802T
HDBASET LITE VE802 TRANSMITTER UNIT
- HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e/6/6a cable
- Superior video quality – up to 4K@35m (Cat 5e/6) / 40m (Cat 6a or ATEN 2L-2910 Cat 6 cable)
- HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology

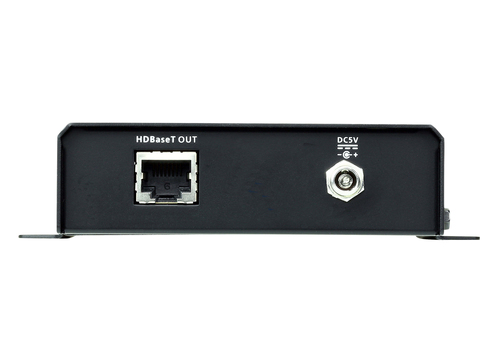

- POH (Power over HDBaseT) – supplies power from Transmitter to Receiver over a long distance via one Cat 5e/6/6a cable

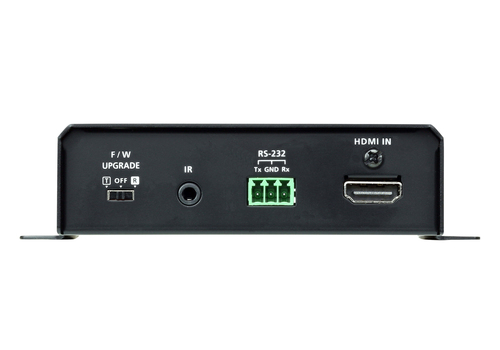

- Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
- Bi-directional IR channel – IR transmission is processed one direction at a time
- Rack- Mountable
- Manufacturer
- ATEN
- Part number
- VE802T
- Condition
- New
- Category
- Input & Output Devices › Switches & Hubs
Overview
The VE802T HDMI HDBaseT-Lite Transmitter connects with HDBaseT receivers* to extend signals up to 70m from the source using one Cat 5e/6/6a cable. It supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE802R) while also granting access to the HDMI display device from the local unit (VE802T). IR signals can also be extended in both directions. The VE802T features Power over HDBaseT (POH) which can send power over Cat 5e/6/6a cable without an additional power supply. The VE802T is HDMI (3D, Deep Color,4k) and HDCP compatible. The VE802T is perfect for a digital entertainment center or any installation that requires superior video quality.
* Compatible HDBaseT Reciver Units: VE802R
Specifications
| Type | AV transmitter |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Maximum transfer distance | 70 m |
| Supported video modes | 2160p |
| Supported graphics resolutions | 4096 x 2160 |
| Bandwidth | 340 MHz |
| HDCP | Yes |
| Material | Metal |
| Consumer Electronics Control (CEC) support | Yes |
| Impedance | 100 Ω |
| Product colour | Black |
| HDMI in | 1 |
|---|---|
| Number of HDMI outputs | 1 |
| RS-232 output ports | 1 |
| Audio input | 1 |
| Audio output | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
| AC input frequency | 60 Hz |
|---|---|
| Operating voltage | 5 V |
| Power consumption (transmitter) (max) | 3.6 W |
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Transmitter dimensions (WxDxH) | 123 x 144.8 x 30 mm |
|---|---|
| Transmitter weight | 440 g |
| Manual | Yes |
|---|
