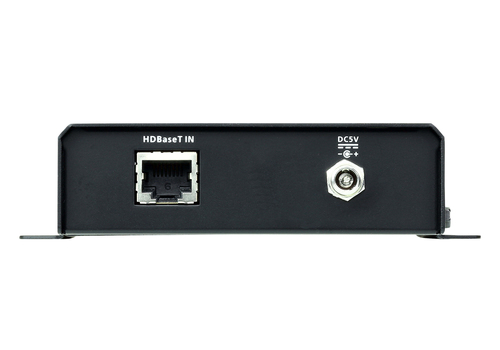

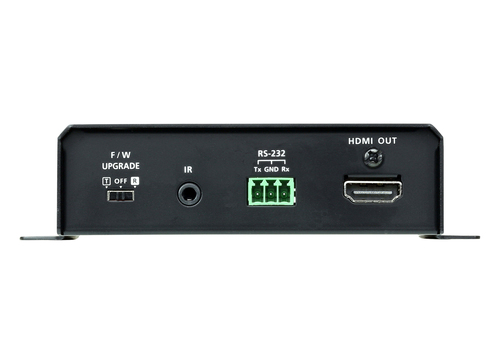

ATEN VE802R AV extender AV receiver Black
Part number VE802R
HDBASET LITE VE802 RECEIVER UNIT
- HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e/6/6a cable
- Superior video quality – up to 4K@35m (Cat 5e/6) / 40m (Cat 6a or ATEN 2L-2910 Cat 6 cable)
- HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
- POH (Power over HDBaseT) – supplies power from Transmitter to Receiver over a long distance via one Cat 5e/6/6a cable
- Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
- Bi-directional IR channel – IR transmission is processed one direction at a time
- Rack- Mountable
- Manufacturer
- ATEN
- Part number
- VE802R
- Condition
- New
- Category
- Input & Output Devices › Switches & Hubs
Overview
The VE802R HDMI HDBaseT-Lite Receiver connects with HDBaseT transmitters* to extend signals up to 70m from the source using one Cat 5e/6/6a cable. It supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE802R) while also granting access to the HDMI display device from the local unit (VE802T). IR signals can also be extended in both directions. The VE802R is HDMI (3D, Deep Color,4k) and HDCP compatible. The VE802R is perfect for a digital entertainment center or any installation that requires superior video quality.
* Compatible HDBaseT Transmitter Units: VE802T
Specifications
| Type | AV receiver |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Maximum transfer distance | 70 m |
| Supported video modes | 2160p |
| Supported graphics resolutions | 4096 x 2160 |
| Bandwidth | 340 MHz |
| HDCP | Yes |
| Material | Metal |
| Consumer Electronics Control (CEC) support | Yes |
| Impedance | 100 Ω |
| Product colour | Black |
| HDMI in | 1 |
|---|---|
| Number of HDMI outputs | 1 |
| RS-232 output ports | 1 |
| Audio input | 1 |
| Audio output | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
| AC input frequency | 60 Hz |
|---|---|
| Operating voltage | 5 V |
| Power consumption (receiver) (max) | 4 W |
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Receiver dimensions (WxDxH) | 123 x 144.8 x 30 mm |
|---|---|
| Receiver weight | 460 g |
| Manual | Yes |
|---|---|
| IR receiver included | Yes |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
