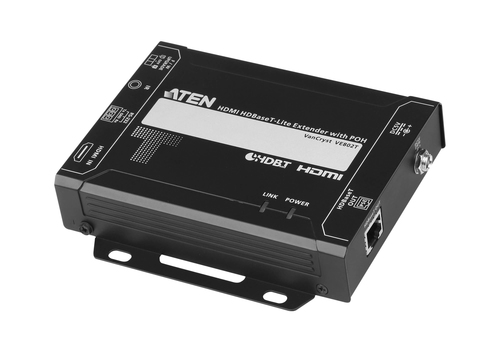

ATEN VE802 AV extender AV transmitter & receiver Black
Part number VE802
HDMI HDBASET LITE EXTENDER UP TO 230FT WITH POH
- HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e/6/6a cable
- Superior video quality – up to 4K@35m (Cat 5e/6) / 40m (Cat 6a or ATEN 2L-2910 Cat 6 cable)
- HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
- POH (Power over HDBaseT) – supplies power from Transmitter to Receiver over a long distance via one Cat 5e/6/6a cable
- Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
- Bi-directional IR channel – IR transmission is processed one direction at a time
- Rack- Mountable
- Manufacturer
- ATEN
- Part number
- VE802
- Condition
- New
- Category
- Input & Output Devices › Switches & Hubs
Overview
The VE802 HDMI HDBaseT-Lite Extender extends an HDBaseT signal up to 70m from the HDBaseT source using one Cat 5e/6/6a cable. VE802 supports RS-232 and IR signaling passthrough, allowing you to control the HDMI source device from the remote unit (VE802R) while also granting access to the HDMI display device from the local unit (VE802T). IR signals can also be extended in both directions. The VE802 features Power over HDBaseT (POH) which can send power over Cat 5e/6/6a cable without an additional power supply. The VE802 is HDMI (3D, Deep Color,4k) and HDCP compatible. The VE802 is perfect for a digital entertainment center or any installation that requires superior video quality.
Specifications
| Type | AV transmitter & receiver |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat6a, Cat6e |
| Maximum transfer distance | 1.8 m |
| Maximum refresh rate | 340 Hz |
| Bandwidth | 10 Gbit/s |
| HDCP | Yes |
| Material | Metal |
| 3D | Yes |
| Plug and Play | Yes |
| Impedance | 100 Ω |
| Product colour | Black |
| Connectivity technology | Wired |
|---|---|
| Number of HDMI outputs | 1 |
| RS-232 input ports | 1 |
| DC-in jack | Yes |
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Dimensions (WxDxH) | 144 x 123 x 30 mm |
|---|---|
| Weight | 440 g |
| Colour | Yes |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
