Overview

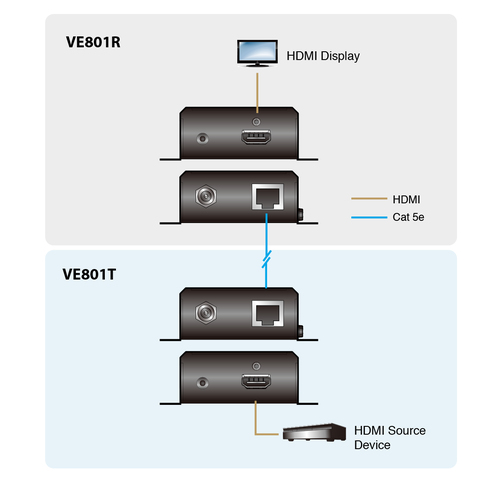

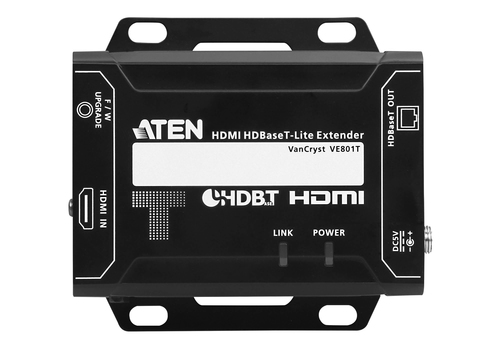

The VE801T HDMI HDBaseT-Lite Transmitter connects with HDBaseT receivers* to extend signals up to 70m from the source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801T all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801T is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended at great distances.
* Compatible HDBaseT Receiver Units: VE801R
Specifications
Features
| Type | AV transmitter |
|---|
| Maximum resolution | 3840 x 2160 pixels |
|---|
| Cable types supported | Cat5e, Cat6, Cat6a |
|---|
| Maximum transfer distance | 70 m |
|---|
| LED indicators | Yes |
|---|
| Supported video modes | 1080p |
|---|
| Bandwidth | 340 MHz |
|---|
| HDCP | Yes |
|---|
| Material | Metal |
|---|
| Product colour | Black |
|---|
Ports & interfaces
| Ethernet LAN | Yes |
|---|
| RJ-45 output ports | 1 |
|---|
| HDMI in | 1 |
|---|
| DC-in jack | Yes |
|---|
Power
| Power consumption (typical) | 1.85 W |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|
| Storage temperature (T-T) | -20 - 60 °C |
|---|
| Operating relative humidity (H-H) | 0 - 80% |
|---|
Weight & dimensions
| Dimensions (WxDxH) | 87 x 103 x 30 mm |
|---|
| Weight | 240 g |
|---|
Packaging content
| AC adapter included | Yes |
|---|
Technical details
| Compliance certificates | RoHS |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
