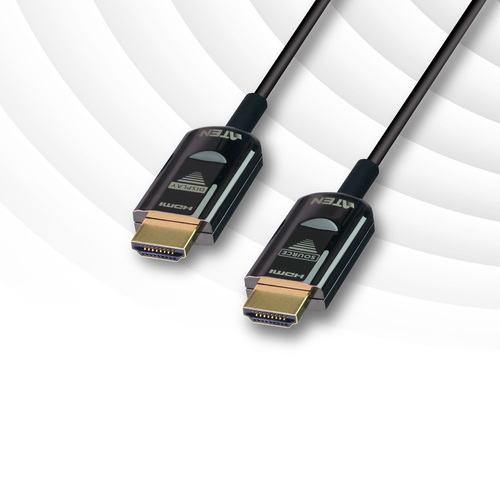

ATEN VE781010 HDMI cable 10 m HDMI Type A (Standard) Black

Part number VE781010

TRUE 4K HDMI ACTIVE OPTICAL CABLE (TRUE 4K@10M) - HDMI LEFT CONNECTOR - MALE LE

Supports resolution up to True 4K (4096 x 2160 @ 60Hz 4:4:4)
HDMI (3D, Deep Color, True 4K, HDR, ARC); HDCP 2.2 compliant
Extends True 4K signals up to 10m
Reduced EMI and RFI for lower noise interference
High data transfer rate of 18 Gbps
Supports multi audio channel – Dolby TrueHD and DTS-HD Master Audio
Robust cable pulling strength (Max.10 kg) and compression load resistance (Max.50 kg)
Plug-and-play

Manufacturer: ATEN
Part number: VE781010
Condition: New
Category: Cables › A/V Accessories
1GPA category: Hardware

Overview

ATEN VE781010 True 4K HDMI Active Optical Cable utilizes AOC technology that enables conversion between input signals and optical signals for optimum high bandwidth data transmissions. The EMI-resistant optical cables come in 10m with full support of True 4K resolutions. It is fully compliant with HDCP 2.2 standards and meets HDMI specifications including 3D, deep color, and data rates up to 18 Gbps. Supported Dolby True HD and DTS-HD Master Audio, the optical cables guarantee lossless audio signal transmissions. The VE781010 optical cable is an ideal solution for extending the reach of your digital signage in a wide range of settings, such as traffic stations, shopping centers, and hospital facilities.

Specifications

Features
Cable length	10 m
Connector 1	HDMI Type A (Standard)
Connector 2	HDMI Type A (Standard)
Connector 1 gender	Male
Connector 2 gender	Male
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Product colour	Black
HDMI version	2.0
3D	Yes
Supported graphics resolutions	3840 x 2160, 4096 x 2160
Dolby technologies	DTS-HD Master Audio, Dolby TrueHD
Audio Return Channel (ARC)	Yes
HDCP	Yes
HDCP version	2.2
Data transfer rate	18 Gbit/s
High Dynamic Range (HDR) supported	Yes
Supported digital audio channels (uncompressed)	8
Bandwidth	600 MHz
Cable material	Copper
Cable type	Round cable
Cable jacket material	Polyvinyl chloride (PVC)
Plug and Play	Yes
Colour sampling	4:4:4, 4:2:0, 4:2:2
Extended display identification data (EDID)	Yes

Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 85%

Certificates
Certification	CE / FCC / RoHS / REACH / UL VW-1 / EMC Class-A / Class-B

Weight & dimensions
Cable diameter	4.5 mm
Weight	350 g

Packaging data
Quantity per pack	1 pc(s)
