Overview
The VE600A DVI Extender with Audio extends your DVI display up to 60 m away from your DVI source using Cat 5e cables. The use of Cat 5e cables provides a simple and reliable connection method that takes advantage of the wiring system in most modern office buildings. The VE600A incorporates ATEN’s technology that allows the A/V signal to be transmitted over one Cat 5e cable. If the real EDID is required, simply use a second Cat 5e cable. With stereo audio support and support for popular widescreen formats, the VE600A provides crystal-clear image and sound quality in all installations where remote DVI video displays are required.
Specifications
Features
| Type | AV transmitter |
|---|
| Maximum resolution | 1920 x 1200 pixels |
|---|
| Cable types supported | Cat5e |
|---|
| Maximum transfer distance | 60 m |
|---|
| Audio system | stereo |
|---|
| Supported video modes | 1080i, 1080p |
|---|
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
|---|
| Bandwidth | 6.75 Gbit/s |
|---|
| Bandwidth | 225 MHz |
|---|
| HDCP | Yes |
|---|
| Material | Metal |
|---|
| Impedance | 100 Ω |
|---|
| Product colour | Black |
|---|
Ports & interfaces

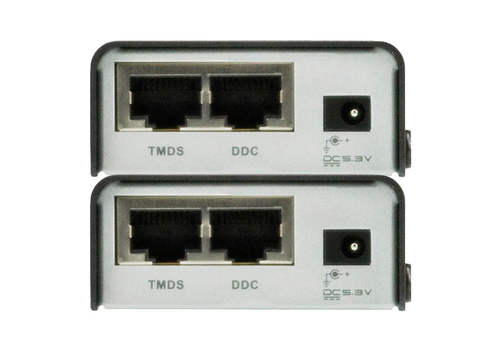

| RJ-45 input ports | 2 |
|---|
| RJ-45 output ports | 2 |
|---|
| DVI input ports | 2 |
|---|
| DVI output ports | 2 |
|---|

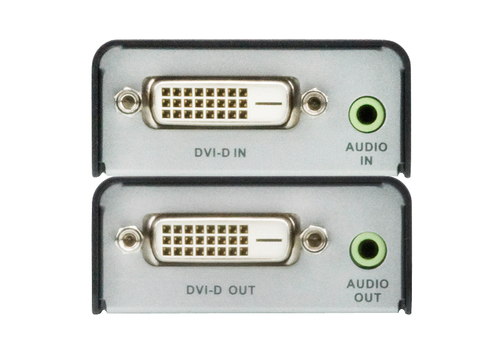

| Video in | 1 x DVI-D Female (White) |
|---|
| Video out | 1 x DVI-D Female (White) |
|---|
| Audio input | 1 x Mini Stereo Jack Female (Green) |
|---|
| Audio output | 1 x Mini Stereo Jack Female (Green) |
|---|
Power
| Operating voltage | 5.3 V |
|---|
| Power consumption (max) | 2.05 W |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|
| Storage temperature (T-T) | -20 - 60 °C |
|---|
| Operating relative humidity (H-H) | 0 - 80% |
|---|
Weight & dimensions
| Dimensions (WxDxH) | 91.3 x 56 x 24 mm |
|---|
| Weight | 170 g |
|---|
Packaging content
| AC adapter included | Yes |
|---|
| Manual | Yes |
|---|
| IR receiver included | Yes |
|---|
| Grounding wire | Yes |
|---|
| Mounting kit | Yes |
|---|
Technical details
| Compliance certificates | RoHS |
|---|
