ATEN

ATEN VE44PB network extender Network transmitter & receiver Black

Part number VE44PB

4-OUTPUT POH/POE POWER INJECTOR

Supplies power for up to four ATEN Power-over-HDBaseT (PoH) /Power-over-Ethernet (PoE) compatible products over Cat 5e/6/6a cables
HDBaseT connectivity – extends HDMI connection over a long distance via Cat 6/6a cable
Offers a data rate up to 10.2Gbps which is compatible with ATEN HDBaseT PoH PD products
• Compatible ATEN PoH-powered/PoE-powered models:
VE2812AT, VE2812AEUT, VE2812AUST, VE1812R, VE802R, VK108US, VK112EU, VK224, VK236, VK248, KE8952, or future ATEN PoH-powered/PoE-powered products which follow IEEE 802.3 af standard
Built-in 8KV/15KV ESD protection
Plug-and-play without additional settings
Rack-mountable
Supplies up to 15.4W of power per PSE port
Status LEDs to provide an at-a-glance overview of device status, improving real-time monitoring and troubleshooting
Assured signal quality – usage of the VE44PB power injector does not affect the signal quality of the video, audio, bi-directional RS-232, and Ethernet transmission*
*The transmission distance maybe reduced to 80% of the original distance.

Manufacturer: ATEN
Part number: VE44PB
Condition: New
Category: Input & Output Devices › Switches & Hubs

Overview

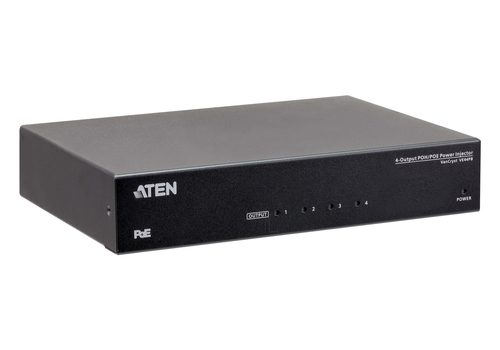

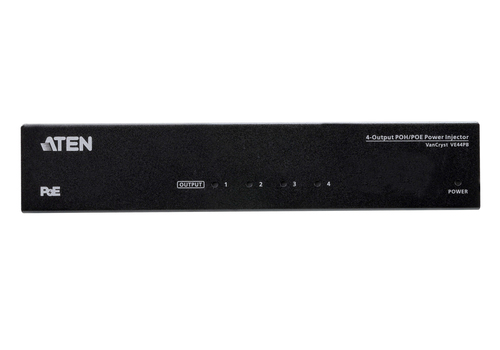

The ATEN VE44PB is a 4-port power injector for remote power supply for up to four compatible ATEN PoH-powered or PoE-powered devices via Cat 5e/6/6a cables. Deploying the VE44PB in your Pro AV facilities eliminates the need for local power supplies of the connected devices. It supplies up to 15.4W of power per PSE port. Featuring HDBaseT connectivity, the VE44PB can extend HDMI connection over a long distance via Cat 6/6a cables; meanwhile, still ensures unaffected video and image quality. Besides, the status LEDs on its front panel indicates an at-a-glance overview of the connected devices, allowing you to perform real-time monitoring and trouble shooting in the case of emergency. With its compact and rack mountable design, the VE44PB can be flexibly installed anywhere between the transmitter and receiver that require remote PoH / PoE powering.

Specifications

Performance
Type	Network transmitter & receiver
Data transfer rate	10.2 Mbit/s
Cable types supported	Cat5e, Cat6, Cat6a
Plug and Play	Yes

Network
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3af

Ports & interfaces

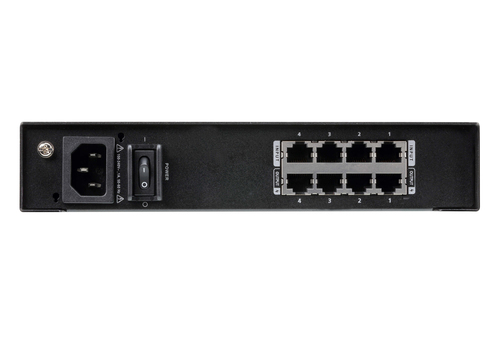

Ethernet LAN (RJ-45) ports	8
RJ-45 ports quantity (transmitter)	4
Power over Ethernet (PoE) ports quantity	4
DC-in jack	Yes

Design
Product colour	Black
Housing material	Metal
Rack mounting	Yes
LED indicators	Yes
On/off switch	Yes

Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	1.1 W
Power consumption (max)	1.2 W
Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	15.4 W

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (transmitter)	0 - 80 °C
Storage temperature (transmitter)	0 - 80 °C

Weight & dimensions
Width	161 mm
Depth	215 mm
Height	41 mm
Weight	1.23 kg

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
