ATEN VE2812AUST AV extender AV transmitter Black
Part number VE2812AUST
HDMIAND VGA/AUDIO HDBASET TRANSMITTER WALL PLATE TYPE WITH POH
- Extends HDMI or VGA signals over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
- Superior video quality:
- • HDMI: 4K at distance up to 100 m via a Cat 6a or ATEN 2L-2910 Cat 6 cable
- • VGA: 1600 x 1200 and 1920 x 1200 up to 100 m via a Cat 6a or ATEN 2L-2910 Cat 6 cable
- HDMI 1.4 (3D, Deep color, 4K); HDCP 2.2 compliant
- Supports HDBaseT Long Reach Mode – up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p
- Designed to mount in a two-gang junction box, compatible with US type
- Built-in PoH (Power over HDBaseT) function – the VE2812AUST receives power supply from the HDBaseT output port on the connected device
- Supports Auto Switch – allows the VE2812AUST to automatically switch to a newly plugged-in source
- Functions as a switch or a converter
- • A Switch: Connects two sources (HDMI or VGA)
- • A Converter: Applies receivers with different interface (DVI, DisplayPort, or HDMI)
- Manufacturer
- ATEN
- Part number
- VE2812AUST
- Condition
- New
- Category
- Cables › A/V Accessories
- 1GPA category
- Hardware
Overview
ATEN VE2812AUST is a transmitter for sending VGA (with audio) and HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring built-in PoH (Power over HDBaseT) function, the VE2812AUST receives power supply from the HDBaseT output port on the connected device. This eliminates the need for a power adapter and reduces the hassle of power line deployment behind the wall. With US Wall Plate design, the VE2812AUST can be conveniently mounted in a two - gang junction box. The VE2812AUST guarantees reliable transmission of HDMI / VGA signals. For HDMI signal transmission, it supports 3D, Deep Color, and embedded HD lossless audio formats. To pursue longer distance transmission, it supports Long Reach Mode up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p.
For utility flexibility, the VE2812AUST can serve as a video switch by connecting two sources and distribute them to an identical output. The compact wall plate design does away with bulky cables, allowing a neat and convenient installation in the wall or the table. Therefore, the VE2812AUST is specifically designed for use in meeting rooms, digital educational environment or wherever needed to meet application requirements.
Note:

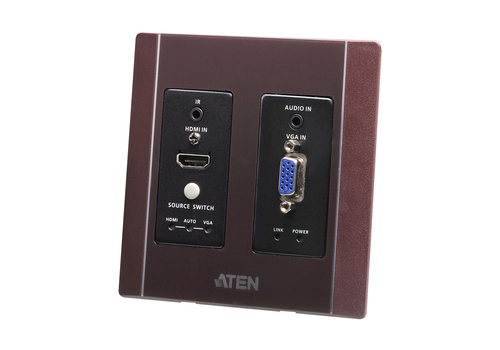

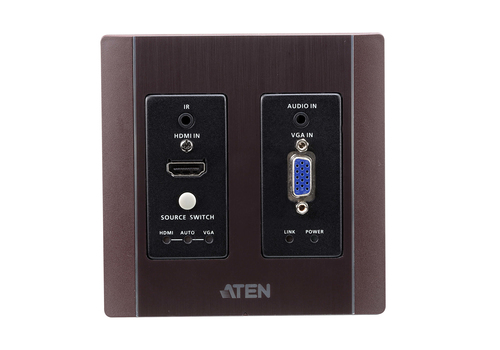

1. This model is also available in brown color – the part no. VE2812AUST2, which is a built-to-order product. To place an order, please contact your regional ATEN representative.
2. All pictures shown are for illustration purpose only. Actual color of the product is based on the product you receive.
Specifications
| Type | AV transmitter |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Maximum transfer distance | 100 m |
| LED indicators | Yes |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| HDCP | Yes |
| Material | Metal |
| 3D | Yes |
| Consumer Electronics Control (CEC) support | Yes |
| HDCP version | 2.2 |
| Product colour | Black |
| Connectivity technology | Wired |
|---|---|
| VGA (D-Sub) input ports | 1 |
| HDMI in | 1 |
| Audio input | 1 |
| Remote (IR) input | 1 |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 87.9 mm |
|---|---|
| Depth | 104.2 mm |
| Height | 51.9 mm |
| Weight | 210 g |
| Quantity per pack | 1 pc(s) |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
