Overview

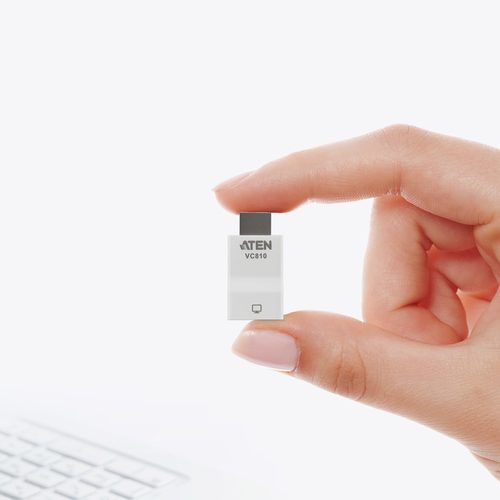

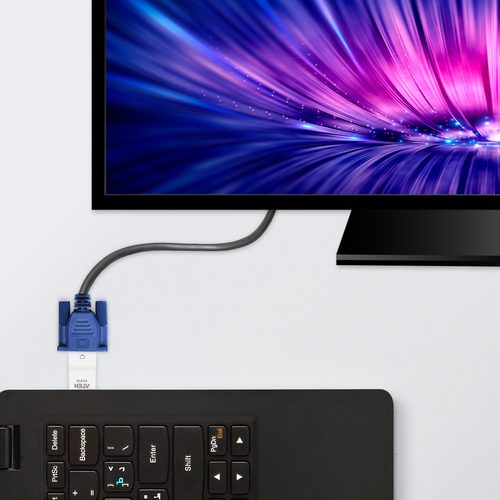

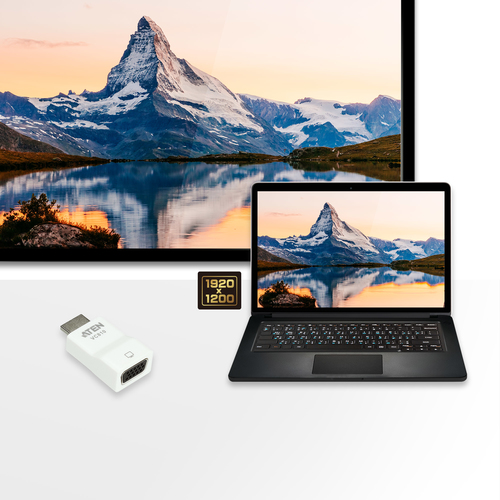

The VC810 is an HDMI-to-VGA converter that allows you to connect an HDMI source (e.g. laptop, PC, ultrabook, etc) directly to a VGA display (e.g. projector, LCD monitor, etc) without upgrading to an HDMI-compatible display at extra cost. It supports frequently used video resolutions of up to 1920 x 1200. The VC810 is compact and convenient to install with no software needed – simply make the hardware connections. In addition, this plug-n-play converter does not require an external power source, which is ideal for environments like conference room where briefings or presentations take place, ensuring great portability, installation simplicity, and manageability.
Specifications
Ports & interfaces
| Host interface | HDMI |
|---|
| Host interface gender | Male |
|---|
| Output interface | VGA |
|---|
Design
| Internal | No |
|---|
| Product colour | White |
|---|
Features
| Connector 1 gender | Male |
|---|
| Connector 2 gender | Female |
|---|
| Connector 1 form factor | Straight |
|---|
| Connector 2 form factor | Straight |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 60 °C |
|---|
| Storage temperature (T-T) | -10 - 70 °C |
|---|
| Operating relative humidity (H-H) | 40 - 85% |
|---|
Weight & dimensions
| Width | 23 mm |
|---|
| Depth | 45.5 mm |
|---|
| Height | 14.8 mm |
|---|
| Weight | 10 g |
|---|
Packaging data
| Quantity per pack | 1 pc(s) |
|---|
Other features
| Material | Plastic |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
