Overview

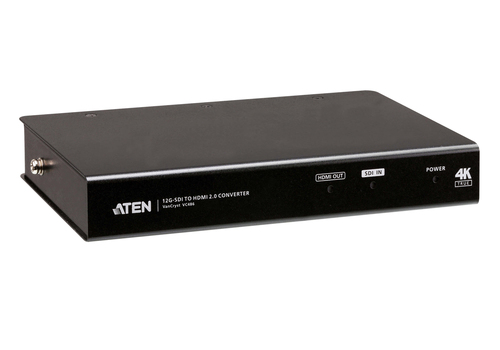

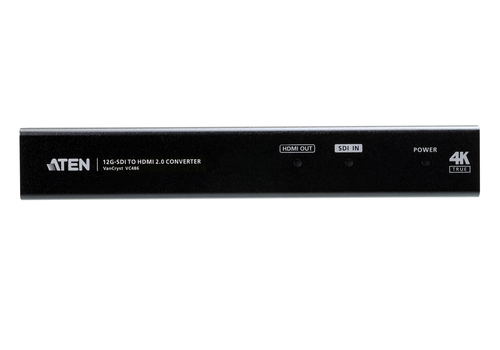

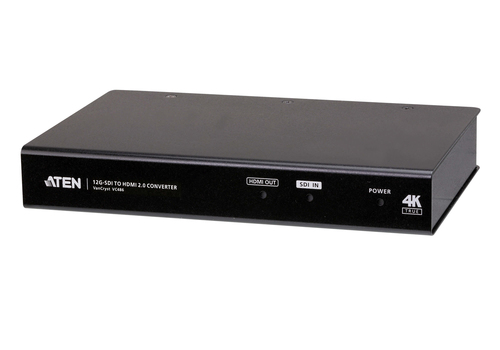

The VC486 is a 12G-SDI to HDMI 2.0 Converter that converts HD/3G/6G/12G-SDI input signals to an HDMI output in real time. It supports various transmission distances depending on different SDI formats, including 45 m (12G-SDI), 60 m (6G-SDI), 90 m(3G-SDI), and 150 m (HD-SDI), offering the flexibility for professional video projects. In addition, the converter works with ATEN VC486 Configuration Software, allowing users to configure the device's input, output, and audio settings with ease. The VC486 is a perfect choice for converting SDI signal to HDMI for applications such as broadcasting, medical imaging and industrial inspection.
Specifications
Features
| Reclocking | Yes |
|---|
| Extended display identification data (EDID) | Yes |
|---|
| LED indicators | Yes |
|---|
| Product colour | Black |
|---|
| Housing material | Metal |
|---|
Video
| Maximum video resolution | 3840 x 2160 pixels |
|---|
| Supported video modes | 720p, 1080i, 1080p, 2160p |
|---|
| Serial Digital Interface (SDI) standard | SMPTE 292M, SMPTE 424M, SMPTE 425M, SMPTE ST-2081, SMPTE ST-2082 |
|---|
Audio
| Line-out balanced impedance | 75 Ω |
|---|

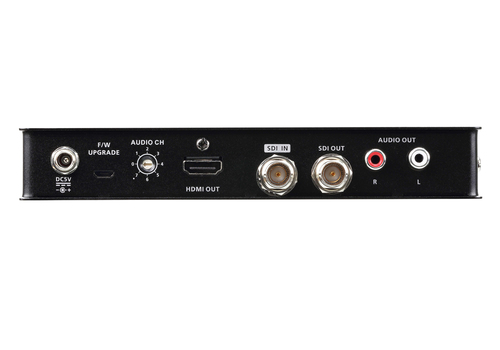

Ports & interfaces
| Host interface | SDI |
|---|
| Output interface | HDMI |
|---|
| Video in | SDI |
|---|
| Video out | HDMI, SDI |
|---|
| Audio output | HDMI, SDI |
|---|
| BNC video output | Yes |
|---|
| BNC output ports | 1 |
|---|
Power
| Input voltage | 5 V |
|---|
| Operating voltage | 5 V |
|---|
| Operating current | 3 A |
|---|
| Power consumption (typical) | 5.69 W |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -20 - 60 °C |
|---|
| Operating relative humidity (H-H) | 20 - 90% |
|---|
| Storage relative humidity (H-H) | 20 - 90% |
|---|
Weight & dimensions
| Width | 1296 mm |
|---|
| Depth | 182 mm |
|---|
| Height | 287 mm |
|---|
| Weight | 650 g |
|---|
