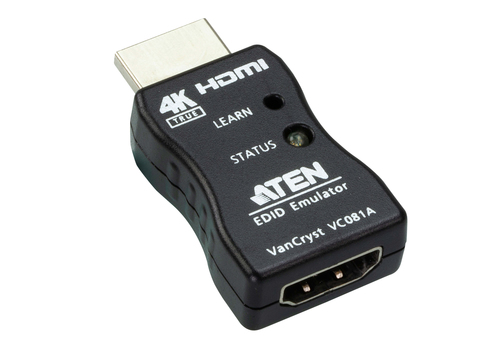

ATEN VC081A EDID emulator
Part number VC081A
TRUE 4K HDMI EDID EMULATOR WITH LEARN BUTTON
- Manages EDID communication between connected devices
- Effectively learns and saves the EDID from the connected HDMI display via single pushbutton and relays it to the video source
- HDMI (3D, Deep Color, True 4K); HDCP 2.2 compliant
- Supports superior video quality up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4) via EDID Learning Mode
- LED indicators to show learning status
- Powered by HDMI source
- Compact and lightweight design
- Manufacturer
- ATEN
- Part number
- VC081A
- Condition
- New
- Category
- Input & Output Devices › Switches & Hubs
Overview
As a True 4K HDMI EDID Emulator Adapter , the VC081A is designed to emulate and store one set of the EDID from the connected display while facilitating 4K video transmission. By learning the EDID from the HDMI display and relaying it to the video source, the VC081A helps to eliminate video communication problems that occur due to the EDID data synchronization failure between the HDMI video source and the connected display.
The VC081A contains a unique “Learn Button Switch” to allow EDID to be effectively learned and saved. Once the EDID is learned, the VC081A can be used to keep a PC or server awake from a remote location over IP instead of the monitor. The VC081A is an ideal device for avoiding blank or blink display issues led by communication errors between sources and displays when integrating a Pro AV system.
Specifications
| Maximum video resolution | 4096 x 2160 pixels |
|---|---|
| Video resolutions | 3840 x 2160,4096 x 2160 pixels |
| Deep colour support | Yes |
| Consumer Electronics Control (CEC) support | Yes |
| Product colour | Black |
|---|---|
| Housing material | Plastic |
| LED indicators | Yes |
| Video port type | HDMI |
|---|---|
| Number of video inputs | 1 |
| Number of video outputs | 1 |
| HDCP | Yes |
| HDCP pass-through | Yes |
| Quantity per pack | 1 pc(s) |
|---|
| Width | 24 mm |
|---|---|
| Depth | 44 mm |
| Height | 11.8 mm |
| Weight | 80 g |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
