ATEN VGA EDID Emulator 1920 x 1200 pixels
Part number VC010
VGA EDID EMULATOR
- Superior video quality – HDTV resolutions of 480i, 480p, 720i, 720p, 1080i, 1080p (1920 x 1080); VGA, SVGA, XGA, SXGA, UXGA and WUXGA (1920 x 1200)
- EDID Wizard – allows a user an easy way to manage EDID settings
- EDID mode selection – Default, Learning , Programming
- Automatically manages EDID communication between connected devices
- Signaling rates up to 2.25 Gbits in support of 1080p display
- LED indication of video source devices
- Supports wide screen
- Supports hot-plugging
- Non-Powered *
- * If the video source is not receiving enough power an external power cord should be connected.
- Manufacturer
- ATEN
- Part number
- VC010
- Condition
- New
- Category
- Accessories › Monitor Accessories
Overview

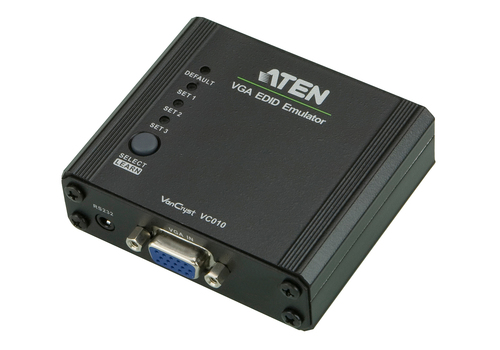

The ATEN VC010 is a VGA EDID Emulator, which is designed to emulate and store the EDID of a video display, providing constant and reliable EDID data for the a VGA source device to efficiently optimize video resolution.
The ATEN VGA EDID Emulator is a convenient tool that ensures smooth viewing experience for any video installation. The EDID Emulator provides three flexible methods for selecting and switching between EDID Modes: Default Mode, Programming Mode, and Learning Mode. It comes with an easy-to-use EDID Wizard that allows users to quickly view, store and manage EDID settings.
Specifications
| Product colour | Black |
|---|
| Maximum video resolution | 1920 x 1200 pixels |
|---|---|
| Supported video modes | 1080i, 1080p, 480i, 480p |
| Host interface | HDB-15 |
|---|---|
| Output interface | HDB-15 |
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 79 mm |
|---|---|
| Depth | 77.6 mm |
| Height | 25.5 mm |
| Weight | 150 g |
| Harmonized System (HS) code | 85176990 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
