ATEN VB800 AV extender AV transmitter & receiver Black
Part number VB800
TRUE 4K HDMI BOOSTER, HDMI TYPE A FEMALE (BLACK) TO HDMI TYPE A FEMALE (BLACK).
- Superior video quality – True 4k resolutions of 4096 x 2160 @ 60 Hz (4:4:4) video and standard 1080p (1920 x 1080 @ 60 Hz)
- HDMI (3D, Deep Color, 4K)
- Max. Data Rate 18 Gbps (6 Gbps Per Lane)
- HDMI and HDCP 2.2 compatible
- Supports up to True 4K resolutions when cascaded up to 10 levels

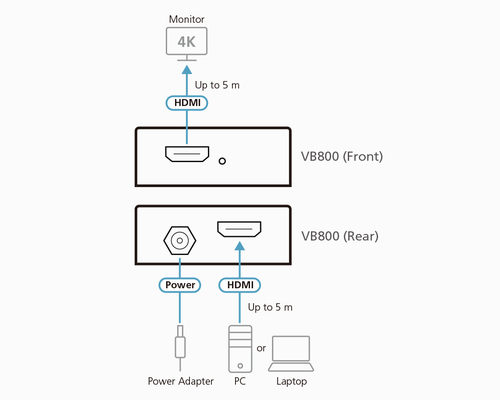

- - Up to 10 m True 4K transmission distance (max. 5 m on the input side and 5 m on the output side)
- - Up to 20 m 1080p transmission distance (max. 10 m on the input side and 10 m on the output side)
- A single unit can be powered from the source device
- Supports HDR10+
- Plug-and-play – No software installation required
- Rack mountable
- * Longer distance transmission is allowed with lower data rates and/or higher quality cable.
- Manufacturer
- ATEN
- Part number
- VB800
- Condition
- New
- Category
- Input & Output Devices › Switches & Hubs
Overview
The VB800 is a True 4K HDMI booster providing a solution for long distance transmission. The HDMI booster reliably extends True 4K signals and can be cascaded up to 10 levels, guaranteeing ultimate color and image quality. The VB800 is HDMI compliant and supports all HDMI-enabled devices. The booster can be rack mounted, offering excellent flexibility for managing both work and home settings.
Specifications
| Type | AV transmitter & receiver |
|---|---|
| Maximum transfer distance | 20 m |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Bandwidth | 18 Gbit/s |
| Bandwidth | 600 MHz |
| HDCP | Yes |
| Material | Metal |
| Plug and Play | Yes |
| Product colour | Black |
| HDMI in | 1 |
|---|---|
| Number of HDMI outputs | 1 |
| DC-in jack | Yes |
| Power consumption (typical) | 0.99 W |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Dimensions (WxDxH) | 56 x 49 x 170 mm |
|---|---|
| Weight | 90 g |
| Cables included | AC |
|---|---|
| Mounting kit | Yes |
