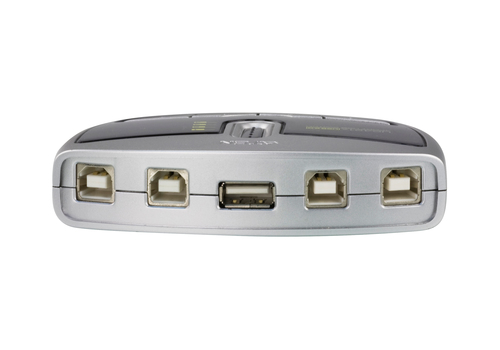

ATEN US421A KVM switch Black, Silver
Part number US421A
US421A ALLOWS 4 COMPUTERS TO SHARE THE SAME USB PERIPHERALS,UNDER THE FOUNDATION
- Enables four computers to share a single USB peripheral device
- Simple port selection via pushbuttons, configuration utility, or Auto Switch function
- Auto Switch Function - no need for print server
- USB 2.0 compliant
- Supports transfer rates up to 480 Mbps
- Multiplatform support - Windows and Mac
- LED indicators display port focus
- Overcurrent protection
- Bus-powered
- Hot pluggable
- Buzzer indicates switching between computers
- Supports multifunction printers
- Manufacturer
- ATEN
- Part number
- US421A
- Condition
- New
- Category
- Input & Output Devices › Usb & Firewire Conn
- 1GPA category
- Hardware
Overview
The US421A is a 4-port USB 2.0 Peripheral Switch that allows up to 4 computers to share the use of a single USB peripheral device (such as a printer, scanner, mass storage drive, etc.) on a one-at-a-time basis.
The peripheral focus can be given to a computer manually by using pushbuttons on the switch, using the software-based configuration utility, or by the Auto Switch function.
Compatible with both Windows and Mac, and with multifunction printer support, the US421A is the ideal way to share the latest USB 2.0 peripherals in a multimedia office environment.
Specifications
| Number of computers controlled | 4 |
|---|---|
| Keyboard port type | No |
| Mouse port type | No |
| USB 2.0 Type-B ports quantity | 4 |
| Console ports | USB B |
| Console USB ports quantity | 4 |
| USB connector type | USB Type-A, USB Type-B |
| USB version | 2.0 |
| Console port | USB |
| Data transfer rate (max) | 0.48 Gbit/s |
|---|---|
| Plug and Play | Yes |
| Rack mounting | No |
|---|---|
| Product colour | Black, Silver |
| Housing material | Plastic |
| LED indicators | Yes |
| Push button | Yes |
| Built-in display | No |
|---|
| USB powered | Yes |
|---|
| Operating temperature (T-T) | 5 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 79.6 mm |
|---|---|
| Depth | 104 mm |
| Height | 22 mm |
| Weight | 97 g |
| Quantity per pack | 1 pc(s) |
|---|
