ATEN

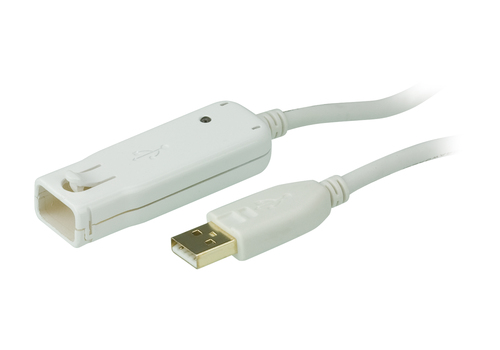

ATEN USB 2.0 Extender Cable 12m
Part number UE2120
39 FT. USB 2.0 BOOSTER CABLE.
- Extends the distance to your USB device(s) up to 12 meters (36’)
- USB specification version 2.0 / 1.1 compliant
- Plug and play - No additional driver required
- Up to 5 extender cables can be chained for a distance of up to 60 meters
- Lockable mechanical design for secure connection
- Bus powered. No power adapter required
- Multiplatform support – Windows, Mac
- Manufacturer
- ATEN
- Part number
- UE2120
- Condition
- New
- Category
- Cables › Cables/Connectors
- 1GPA category
- Hardware
Overview
The UE2120 allows users to extend the distance between a computer and USB device up to 12 meters via the active extender cable. USB signals transmitted through these cables maintain optimal signal integrity and meet USB 2.0 standards.
The UE2120 features a unique lockable mechanical design that securely links the male and female ends of the USB cable, ensuring stable connection between cables. Up to 5 extender cables can be chained together, so that cable distance is increased by up to 60 meters.
Specifications
| USB version | USB 2.0 |
|---|---|
| Connector 1 | USB A |
| Connector 2 | USB A |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable jacket material | Plastic |
| Maximum data transfer rate | 480 Mbit/s |
| Maximum data transfer rate | 0.48 Gbit/s |
| Product colour | White |
| Cable length | 12 m |
|---|---|
| Weight | 468 g |
| Package width | 56 mm |
|---|---|
| Package depth | 186 mm |
| Package height | 157 mm |
| Package weight | 525 g |
| Quantity per pack | 1 pc(s) |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Products per master (outer) case | 20 pc(s) |
|---|---|
| Master (outer) case width | 305 mm |
| Master (outer) case length | 390 mm |
| Master (outer) case height | 335 mm |
| Master (outer) case gross weight | 11.4 kg |
| Master (outer) case net weight | 9.36 kg |
| Harmonized System (HS) code | 84733080 |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
