ATEN UCE3250 interface cards/adapter
Part number UCE3250
4PORT CAT 5 USB 20 UP TO 165FT EXTENDER UP TO 165FT
- High-Speed USB 2.0 compliant with a data transfer rate of up to 480 Mbps
- Extension distance of up to 50m over a Cat 5/5e/6 cable
- Receives up to 4 USB peripherals of all types – flash drives, keyboards, mice, webcams, scanners, printers and more
- Metal mechanical with wall mount design supports industrial deployment
- Supports Windows®, OS X®, and Linux®
- Plug- and- play
- Manufacturer
- ATEN
- Part number
- UCE3250
- Condition
- New
- Category
- Input & Output Devices › Usb & Firewire Conn
- 1GPA category
- Hardware
Overview

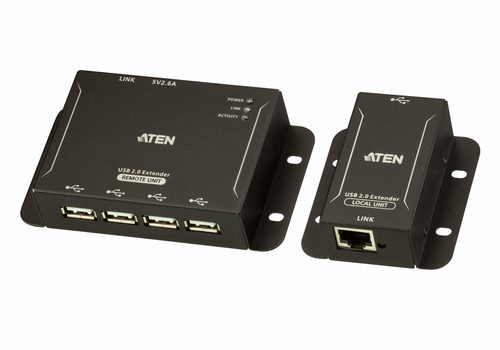

The UCE3250 4-port USB 2.0 Cat 5 Extender is a two-unit device that serves as a USB hub and a USB extender. The UCE3250 unit can connect as many as 4 USB peripherals from up to 50 meters away from your computer over a Cat 5 / 5e / 6 Ethernet cable.
The UCE3250 transmits data through signal packages with better compatibility and preserves the integrity of the data over long distances. The power supply at the remote UCE3250 unit helps provide sufficient power to any type of USB device, such as flash drives, keyboards, mice, webcams, scanners, or printers, etc.
With its durable metal housing, this high-quality USB extender provides a fast and flexible solution for industrial applications. In addition, the compact size and integrated wall mounting enables space-saving installation.
Specifications
| Port multiplier | Yes |
|---|
| Product colour | Black |
|---|---|
| LED indicators | Activity |
| Plug and Play | Yes |
|---|
| USB powered | Yes |
|---|
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 70 °C |
| Compliance certificates | RoHS |
|---|
| Width | 63.3 mm |
|---|---|
| Depth | 110.4 mm |
| Height | 24.1 mm |
| Weight | 160 g |
| Quantity per pack | 1 pc(s) |
|---|---|
| Cables included | USB |
| Manual | Yes |
| Harmonized System (HS) code | 84733020 |
|---|
| Cable length | 50 m |
|---|---|
| Relative humidity | 0 - 80% |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
