ATEN SN3002 serial server RS-232
Part number SN3002
2-PORT RS-232 SERIAL CONSOLE SERVER
- Serial-to-Ethernet Connectivity

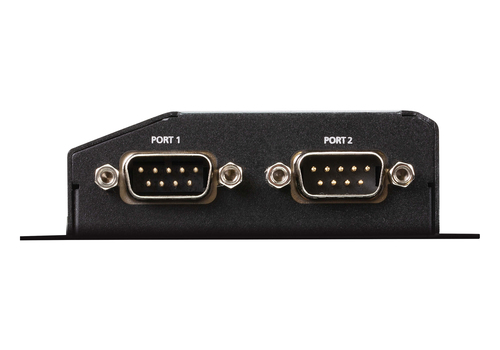

- 2 RS-232 serial ports for secured serial data over Ethernet transmission
- Secured operation modes – Secure Real COM, Secure TCP Server / Client, Secure Serial Tunneling Server / Client, Console Management (SSH), and Console Management Direct (SSH)
- Standard operation modes – Real COM, TCP Server / Client, Serial Tunneling Server / Client, UDP, Console Management (Telnet), and Console Management Direct (Telnet)
- Real COM, Real TTY, and Fixed TTY drivers for Windows, Linux, and UNIX
- Convenient console management access via Java viewer (SSH/Telnet) or third-party clients such as PuTTY
- Easy console port access via Java viewer and Sun Solaris ready ("break-safe")
- Multiple users can simultaneously access the same port – up to 16 connections per port
- Hardware

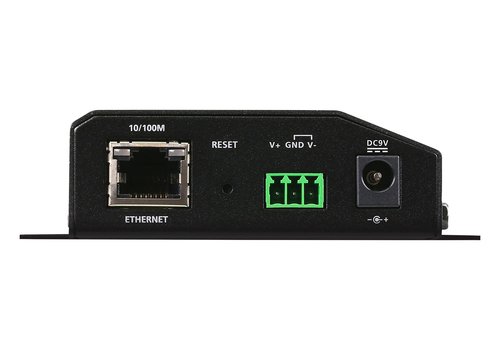

- Redundant power input (power jack and terminal block) for fail-safe power
- Surge protection for serial, Ethernet, and power
- DIN-rail mounting, wall mounting, rack mounting, and desktop installation available
- Manufacturer
- ATEN
- Part number
- SN3002
- Condition
- New
- Category
- Network Devices › Servers
- 1GPA category
- Hardware
Overview

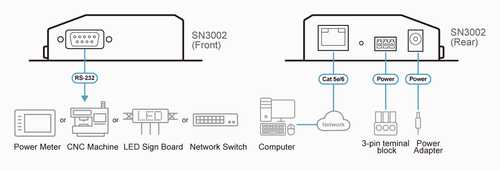

ATEN SN3000 series Secure Device Servers are external IP-based network devices that securely connect legacy serial RS-232 devices to an Ethernet network to be accessed remotely from a computer located anywhere, allowing you to expand the number of serial ports for any host computer over a network.
The SN3000 series is especially suited for industrial process control applications, given the abundant use of the Supervisory Control and Data Acquisition (SCADA) systems across many industries for collecting data from PLCs, meters, and sensors via serial ports. The SN3000 series bidirectionally translates data between serial and Ethernet formats, and facilitates access to the data from all data collection instruments from local and remote sites through an Ethernet network.
The SN3000 series has a number of useful operation modes. It supports secure TCP server / client, secure serial tunneling server / client, secure Real COM, and console management modes for security-critical applications, such as telecom, access control, and remote site management.
Specifications
| Serial ports quantity | 2 |
|---|---|
| Serial interface type | RS-232 |
| Isolation | 1.5 kV |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Baud rate | 921.6 Kbit/s |
| RS-232 signals | CTS, DCD, DSR, DTR, GND, RTS, RXD, TXD |
| Data bits | 5, 6, 7, 8 |
| Flow Control type | DTR/DSR, RTS/CTS, XON/XOFF |
| Parity bit | Even, Mark, No, Odd, Space |
| Stop bits | 1, 1.5, 2 |
| Compliance certificates | RoHS |
| Certification | EMC: EN 55032/35 EMI: CISPR 32, FCC 15B A EMS: IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-8 IEC 61000-4-1 RoHS |
| Ethernet LAN (RJ-45) ports | 1 |
|---|---|
| Cabling technology | 10/100Base-T(X) |
| Power source type | DC |
|---|---|
| Input voltage | 9/48 V |
| Security algorithms | RSA, SNMP, SNMPv2, SSH, TLS |
|---|
| LED indicators | LAN, Power, Status |
|---|
| Weight | 210 g |
|---|---|
| Dimensions (WxDxH) | 98 x 117 x 26 mm |
| Operating temperature (T-T) | 0 - 60 °C |
|---|---|
| Storage temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Product colour | Black |
|---|---|
| Housing material | Metal |
| Safety | UL 60950-1, UL 62368-1 |
| User guide | Yes |
|---|---|
| AC adapter included | Yes |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
