ATEN

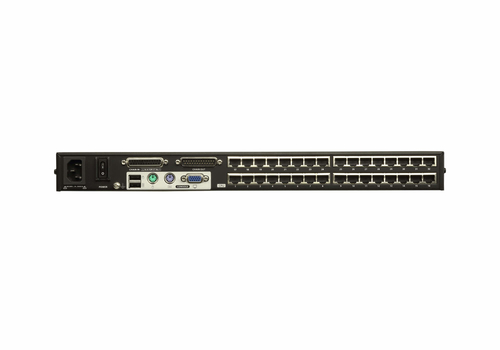

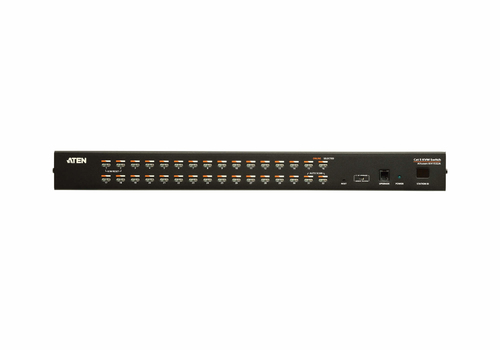

ATEN KH1532A KVM switch Rack mounting Black

Part number KH1532A

32PORT CAT5 KVM SWITCH

One KVM console controls up to 32 directly connected computers
Space-Saving RJ-45 connectors and Cat 5e/6 cabling
By daisy chaining up to 31 additional KH1532A switches, as many as 1024 computers can be controlled from the original KVM console
Console conversion – any KVM console can control any type of computer; mixed combinations (PS/2 & USB) are supported on both the KVM console and computer sides
Superior video quality – supports video resolutions up to 1920 x 1200 @ 60 Hz up to 30 meters*, 1600 x 1200 @ 60 Hz up to 40 meters, and 1280 x 1024 @ 75 Hz up to 50 meters
Configure port access rights for users on a port-by-port basis
Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
Multiplatform support – Windows, Linux, Mac and Sun
Compatible with ATEN KVM adapter cables – allows flexible interface combinations (PS/2, USB with VGA, DVI, HDMI and DisplayPort video interface, Sun and serial) to control all computer types
Multiple user accounts – supports up to 10 user and 1 administrator accounts
Two-Level password security – supports one administrator and ten user profiles. Password protection prevents unauthorized access to the installation
Auto Scan mode enables continuous monitoring of user-selected computers

Manufacturer: ATEN
Part number: KH1532A
Condition: New
Category: Input & Output Devices › Switches & Hubs
1GPA category: Hardware

Overview

The KH1532A KVM switches are control units that allow IT administrators to access and control multiple computers from a single PS/2 or USB KVM console (keyboard, monitor, and mouse). Operators can take control of up to 32 (KH1532A) computers. By daisy chaining up to 31 additional switches, as many as 1024 computers can be controlled from a central KVM console.

These switches have been designed with unique and powerful features that enable administrators to manage their entire server room and data center devices easily and conveniently.

For example, the advanced Adapter ID feature stores the Adapter Cable's configuration information – such as its ID, port name, OS, keyboard language, and more. This feature allows administrators to relocate servers to different ports without having to reconfigure the adapters. Another advantage found in these switches is Full HD video quality – extending the distance to the servers to up to 30 m at a resolution of 1920 x 1200 *.

In addition, the switches are compatible with ATEN KVM adapter cable. This allows flexible interface combinations (PS/2, USB with VGA, DVI, HDMI and DisplayPort video interface, Sun and serial) to control all computer types.

A KH1532A installation provides one of the best and most economical solutions ATEN has to offer the SMB market. There is no better way to save a data center time, space, and money than with a KH1532A KVM switch.

*For video resolution 1920 x 1200 @ 60Hz, a KA71XX or KA75XX series KVM adapter is required.

Specifications

Ports & interfaces
Number of computers controlled	32
Keyboard port type	USB, PS/2
Mouse port type	USB, PS/2
Video port type	VGA
VGA (D-Sub) ports quantity	1
Console ports	PS/2, USB A, VGA (D-Sub)
Console USB ports quantity	2
USB connector type	USB Type-A
PS/2 ports quantity	2

Network
Ethernet LAN (RJ-45) ports	32

Performance
HD type	Full HD
Maximum resolution	1920 x 1200 pixels
Scan interval	1,255 s
Daisy chain	Yes
Firmware upgradeable	Yes

Design
Rack mounting	Yes
Product colour	Black
Housing material	Metal
LED indicators	Yes
Push button	Yes

Display
Built-in display	No

Power
Power source	AC
Input voltage	100-240, 1 V
AC input frequency	50-60 Hz
Power consumption (typical)	4.8 W

Sustainability
Compliance certificates	RoHS

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%

Weight & dimensions
Width	163.7 mm
Depth	437.2 mm
Height	44 mm
Weight	2.81 kg

Packaging content
Cables included	AC, Phone (RJ-11)
Manual	Yes
Rack mount kit	Yes

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
