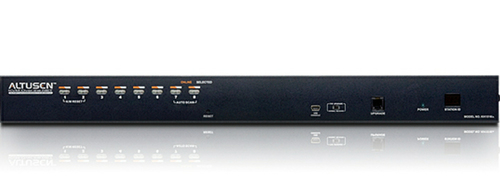

ATEN KH1508Ai KVM switch Rack mounting Black

Overview

Features

Hardware

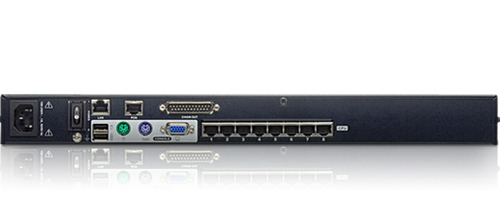

- High port density – RJ-45 connectors for up to 8 ports in a 1U housing

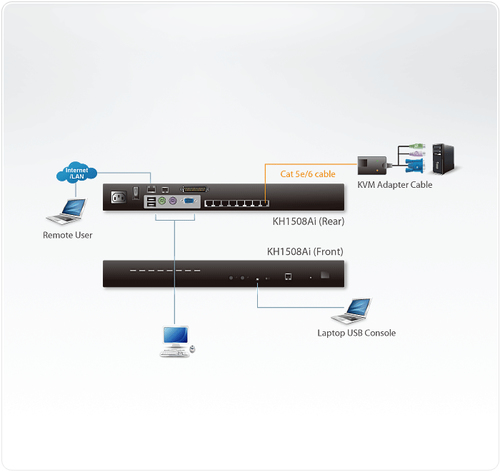

- A dedicated USB port directly connects to a laptop for easy Console operation

- One bus for remote KVM over IP access

- Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity

- Local console provides PS/2 and USB keyboard and mouse support

- Multiplatform support - Windows, Mac, Sun and Linux

- Superior Video Quality - up to 1600 x 1200 @ 60Hz at up to 40 meters and 1280 x 1024 @ 75Hz at up to 50 meters*

- Daisy-chain up to 15 additional units – control up to 128 computers from a single console

* With KVM Adapter Cable KA7000 series.

Management

- Up to 64 user accounts – up to 32 users simultaneously share the control

- End session feature – administrators can terminate running sessions

- Event logging and Windows-based Log Server support

- Local Log Event

- Adapter ID – stores port information allowing administrators to relocate the servers to different ports, without having to reconfigure the adapters and switch

- Port Share Mode allows multiple users to gain access to a server simultaneously

- Integration with ALTUSEN CC2000 Management software

- Power Over the NET™ integration for remote power control

- Firmware upgradeable

- IPv6 capable

Ease-to-Use Interface

- Local Console, Browser, and AP GUIs offer a unified Multilanguage interface to minimize user training time and increase productivity

- Multiplatform client support (Windows, Mac OS X, Linux, Sun)

- Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)

- Browser-based UI in pure Web technology allows administrators to perform administrative tasks without the need for Java to be pre-installed

- Panel Array Mode#8482;

- Keyboard broadcast – keyboard input can be duplicated on all the attached servers

Advanced Security
