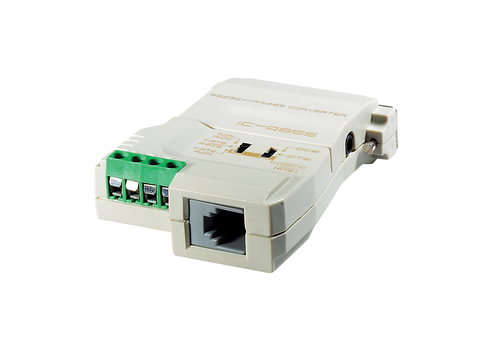

ATEN IC485S signal converter
Part number IC485S
IC485S - TRANSCEIVER - 100 KBPS - RS-232; RS-422; RS-485 - WIRED - EXTERNAL
- Data transmission controlled by the RTS signal.
- DCE/DTE selectable.
- Point to point, multidrop, and simplex/duplex link selection.
- Four wire full duplex; two wire half duplex.
- Compact size.
- Cable distance of up to 1200m (4000 ft.).
- Monitor configuration support.
- Supports baud rates up to 115.2Kbps.
- OS Support: Windows 2000, Windows XP
- Manufacturer
- ATEN
- Part number
- IC485S
- Condition
- New
- Category
- Cables › Cables/Connectors
- 1GPA category
- Hardware
Overview
IC485S is a 2-way converter for converting RS-232 signals to and from RS-422/RS-485 signals in long-distance applications up to 1200 m (4000 ft.). It supports the connection of up to 32 hubs and features monitoring to confirm the data passing between devices.
Specifications
| Width | 74.5 mm |
|---|---|
| Height | 18.5 mm |
| Depth | 54 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
