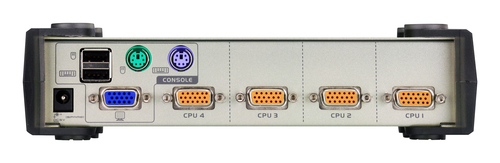

ATEN CS84U KVM switch Black, Grey
Part number CS84U
4PORT PS2 USB CS84U KVM SWITCH W/ 4 6 FT USB CABLES
- One PS/2-USB VGA console controls four VGA interface computers
- Dual Interface - supports computers with PS/2 or USB keyboards and mice
- Computer selection via front panel pushbuttons, hotkeys, and mouse
- Multiplatform support - Windows, Linux, Mac, and Sun
- Superior video quality - 2048 x 1536; DDC2B
- Video DynaSync™ - Exclusive ATEN technology eliminates bootup display problems and optimizes resolution when switching between ports
- Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
- Complete keyboard emulation for error-free booting
- Mac/Sun keyboard support and emulation*
- Multilingual keyboard mapping - supports English, Japanese, and French keyboards
- Gaming keyboard support
- Auto Scan Mode for monitoring all computers
- Manufacturer
- ATEN
- Part number
- CS84U
- Condition
- New
- Category
- Input & Output Devices › Switches & Hubs
- 1GPA category
- Hardware
Overview
The CS84U enables quick access to up to 4 VGA-interfaced PCs via one KVM console and helps to expand your desktop workspace while keeping it tidy and organized for improved productivity.
One Console Cable, Two Connection Options
CS84U offers two types of console KVM cables in different lengths for selection, allowing connection to either PS/2 or USB keyboard/mouse to flexibly accommodate installation requirements. Access to each PC can be quickly switched via pushbuttons, hotkey or mouse from the KVM console.
Smooth Cross-Platform Integration
The CS84U enables the integration of different computer systems (Windows, Mac, Linux and Sun) that are accessible from one KVM console.
Video DynaSync™
ATEN's patented Video DynaSync™ ensures correct resolutions and display configurations are maintained when switching between ports under all operating systems, while also eliminating boot-up display problems and assuring smooth desktop operation.
Specifications
| Number of computers controlled | 4 |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 4 |
| Console ports | USB A, VGA (D-Sub) |
| USB 2.0 Type-A hub ports quantity | 2 |
| USB connector type | USB Type-A |
| DC-in jack | Yes |
| HD type | QXGA |
|---|---|
| Maximum resolution | 2048 x 1536 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 3,5,10,20 s |
| DDC2B support | Yes |
| Rack mounting | No |
|---|---|
| Product colour | Black, Grey |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Built-in display | No |
|---|
| Power source | DC |
|---|---|
| Input voltage | 5 V |
| Power consumption (typical) | 0.45 W |
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Width | 88 mm |
|---|---|
| Depth | 210 mm |
| Height | 55.5 mm |
| Weight | 770 g |
| Quick installation guide | Yes |
|---|---|
| Manual | Yes |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
