Overview

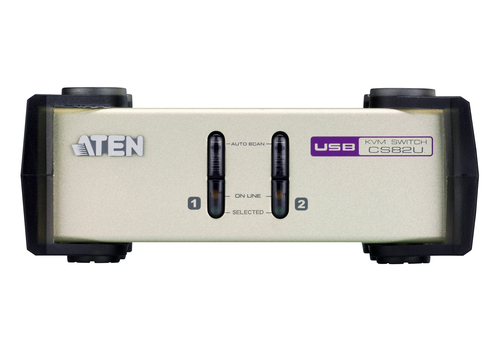

The CS82U PS/2-USB KVM Switch is a desktop control unit that allows users to access two computers from a single KVM console (PS/2 or USB keyboard and mouse, and VGA monitor). In addition, CS82U comes with ATEN's new Video DynaSync™ technology, which eliminates boot-up display problems and optimizes resolution.
Setup is fast and easy; simply plug cables into their appropriate ports. There is no software to configure, no installation routines, and no incompatibility problems. Since the CS82U intercepts keyboard input directly, it will work on multiple computing platforms.
Specifications
Ports & interfaces
| Number of computers controlled | 2 |
|---|
| Keyboard port type | USB, PS/2 |
|---|
| Mouse port type | USB, PS/2 |
|---|
| Video port type | VGA |
|---|
| VGA (D-Sub) ports quantity | 1 |
|---|
| Console ports | PS/2, USB A, VGA (D-Sub) |
|---|
| Console USB ports quantity | 2 |
|---|
| USB 2.0 Type-A hub ports quantity | 2 |
|---|
| USB connector type | USB Type-A |
|---|
| PS/2 ports quantity | 2 |
|---|
| DC-in jack | Yes |
|---|
Performance
| HD type | QXGA |
|---|
| Maximum resolution | 2048 x 1536 pixels |
|---|
| Video bandwidth | 60 Hz |
|---|
| Scan interval | 3,5,10,20 s |
|---|
| DDC2B support | Yes |
|---|
Design
| Rack mounting | No |
|---|
| Product colour | Black, Light grey |
|---|
| Housing material | Metal |
|---|
| LED indicators | Yes |
|---|
| Push button | Yes |
|---|
| Hot keys | Yes |
|---|
Display
| Built-in display | No |
|---|
Power
| Power source | DC |
|---|
| Input voltage | 5 V |
|---|
| Power consumption (typical) | 1.1 W |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|
| Storage temperature (T-T) | -20 - 60 °C |
|---|
| Operating relative humidity (H-H) | 0 - 80% |
|---|
| Storage relative humidity (H-H) | 0 - 80% |
|---|
Weight & dimensions
| Width | 88 mm |
|---|
| Depth | 140 mm |
|---|
| Height | 55.5 mm |
|---|
| Weight | 540 g |
|---|
Packaging content
| Quick installation guide | Yes |
|---|
| Manual | Yes |
|---|
Other features
| I/O ports | 2x SPHD-18 |
|---|
