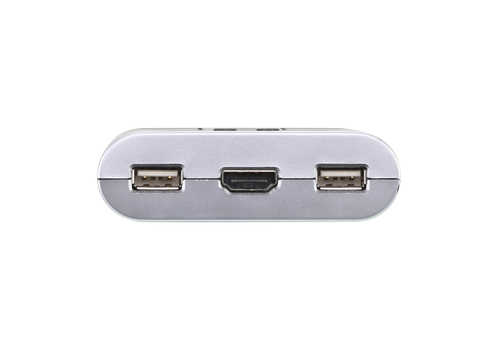

ATEN CS692 KVM switch Black
Part number CS692
2PORT HD USB CABLE KVM WITH VIDEO DYNASYNC
- Superior video quality - up to 1920 x 1200 and 1080p
- Computer selection via a remote port selector, hotkeys, and USB mouse
- Independent switching of the KVM and Audio focus - one computer has the KVM focus and the other the Audio focus
- Built-in all-in-one cables (2 x 1.2 m) and bus-powered design
- Manufacturer
- ATEN
- Part number
- CS692
- Condition
- New
- Category
- Input & Output Devices › Switches & Hubs
- 1GPA category
- Hardware
Overview
The CS692 2-Port USB HDMI/Audio Cable KVM Switch links two HDMI-enabled PCs or devices to a single USB keyboard, USB mouse, and HD display console. The CS692 Switch takes a giant step forward from prior cable KVM models in the Petite series, by offering full HDMI functionality, USB 2.0 peripheral sharing (via a USB hub attached to the USB mouse port), and a firmware upgrade function that allows you to keep up with latest available versions.
Featuring an unbeatable combination of HDMI functionality, USB 2.0 peripheral sharing convenience, gaming keyboard support, and enhanced user-friendly operations, the CS692 allows users to keep up with the latest innovations in desktop multimedia applications.
Specifications
| Number of computers controlled | 2 |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 2 |
| Console ports | 3.5mm headphone, 3.5mm mic, HDMI, USB A |
| Console USB ports quantity | 2 |
| Console HDMI ports quantity | 1 |
| USB 2.0 Type-A hub ports quantity | 4 |
| USB connector type | USB Type-A |
| Audio connections | Yes |
| Headphone outputs | 3 |
| Number of microphone inputs | 3 |
| HD type | WUXGA |
|---|---|
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 3,5,10,20 s |
| Rack mounting | No |
|---|---|
| Product colour | Black |
| Housing material | Plastic |
| Cable length | 1.2 m |
| Remote switch cable length | 1.8 m |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Built-in display | No |
|---|
| Power source | DC |
|---|---|
| Input voltage | 5 V |
| Power consumption (typical) | 0.72 W |
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Width | 82.4 mm |
|---|---|
| Depth | 66.5 mm |
| Height | 25.2 mm |
| Weight | 480 g |
| Quick installation guide | Yes |
|---|---|
| Manual | Yes |
