Products › Input & Output Devices

ATEN

ATEN CS52DP KVM switch Black

Part number CS52DP

2-PORT USB-C DISPLAYPORT HYBRID CABLE KVM

  • One KVM console controls one USB DisplayPort computers and one USB-C device
  • Superior video quality – up to 4096 x 2160 @ 60 Hz
  • Computer selection via remote port selector
  • Supports DisplayPort Alternate Mode (DP Alt Mode) which enables the USB connection to carry DisplayPort signals
  • DisplayPort 1.2 and HDCP compliant1
  • Bus-powered – no external power adapter required
  • The console USB ports can be used for USB peripheral sharing2
  • Multiplatform support – Windows, Mac, Linux, Android, and iOS
  • No software required

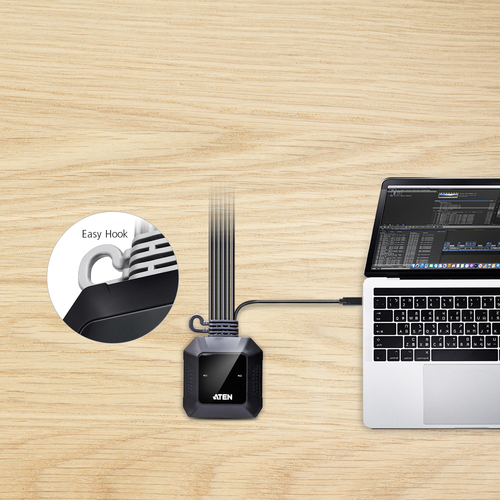

  • Hook design for space-saving and organized workstation
  • Supports USB hot-plugging
Manufacturer
ATEN
Part number
CS52DP
Condition
New
Category
Input & Output Devices › Switches & Hubs
1GPA category
Hardware

Overview

As an increasingly mobile workforce hot-desks between home and hybrid offices, agility is the key to effective multitasking and remaining engaged in productivity. The compact CS52DP is one of the best choices to meet these hybrid work challenges head on by revamping your workspace with the power of a cable KVM switch and the mobility of USB-C connectivity. Streamline even the most complex workflows by simply pushing the button on the remote port selector to switch between your tasks on one DisplayPort PC and a mobile USB-C device from a DisplayPort and USB console. The DisplayPort-enabled shared screen further assures outstanding 4K audiovisual quality across two computer platforms. Get agile with the CS52DP to jump start your hybrid work productivity and stay ahead of the pack.

Exceptional AV Performance in Vivid 4K

The CS52DP empowers your desktop workflows with 4K DCI audiovisual enhancement by presenting visual content in outstanding precision.

Space-Cost Efficient Desktop Setup

The compact CS52DP enables plug-n-play USB-C connection to a mobile device such as a laptop without going through a docking station, which is a useful, budget-friendly option to expand desktop workspace in a neat and tidy way.

Smooth Cross-Platform Integration

The CS52DP enables the integration of different computer systems (Windows, Mac, Sun, Linux, Android and iOS) that are accessible over one KVM console.

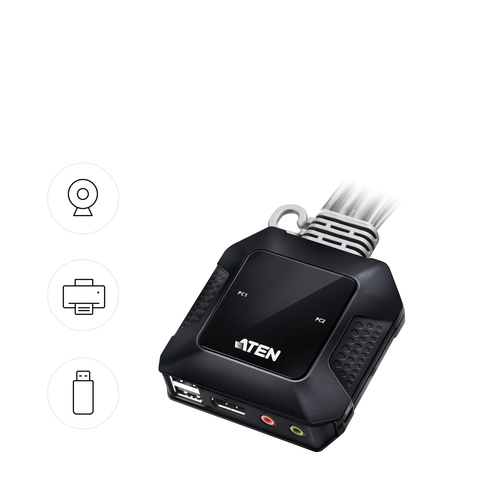

Flexible USB Peripheral Sharing

The console USB ports can be used for plug-n-play connection to compatible USB 2.0 peripheral devices to fulfill data-intensive desktop work requirements.

Specifications

Ports & interfaces
Number of computers controlled2
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDisplayPort
DisplayPorts quantity1
DisplayPort version1.2

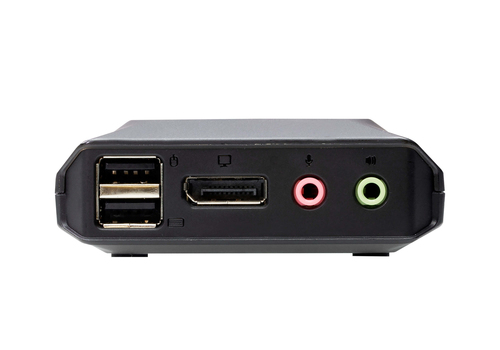

Console ports3.5mm headphone, 3.5mm mic, DisplayPort
Console USB ports quantity2
USB connector typeUSB Type-A, USB Type-C
Headphone outputs2
Number of microphone inputs2
Performance
HD type4K Ultra HD
Maximum resolution4096 x 2160 pixels
HDCPYes
Hot-Plug supportYes
Design
Rack mountingNo
Product colourBlack
Housing materialPlastic

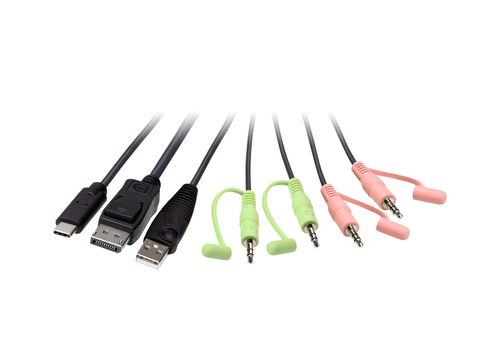

Cable length1.2 m
Remote switch cable length1.8 m
LED indicatorsYes
Display
Built-in displayNo
Power
Power sourceUSB
Power consumption (typical)0.74 W
System requirements
Windows operating systems supportedYes
Linux operating systems supportedYes
Mac operating systems supportedYes
Other operating systems supportedAndroid, iOS
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%
Weight & dimensions
Width84.2 mm
Depth83.4 mm
Height30.4 mm
Weight300 g
Packaging data
Package width55 mm
Package depth155 mm
Package height223 mm
Package weight407 g
Packaging content
Quick installation guideYes
Logistics data
Country of originTaiwan

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
