ATEN CS17916 KVM switch Rack mounting Black
Part number CS17916
16PORT HDMI KVM SWITCH
- One USB console controls up to sixteen HDMI interface computers and two additional USB 2.0 devices
- HDMI compatible
- Cascadable to two levels–control up to 256 computers1
- Multi-Display feature – stack up to eight CS17916 units and display video from up to eight monitors(dual display/triple display/quad display/multi-display)
- 2-port USB 2.0 hub built in2

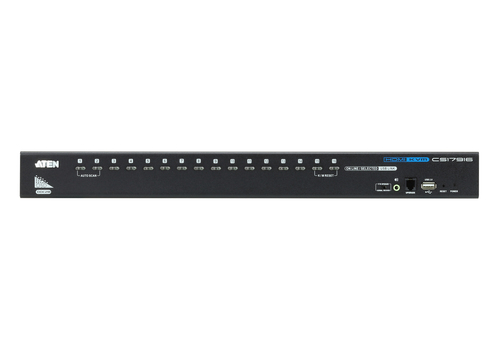

- Computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD)
- Independent switching of KVM and USB focus
- OSD Backup/Restore feature–enables the administrator to back up the switch’s configuration and user profile information
- Firmware upgradable
- Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Superior video quality–supports up to 1080p / 1920 x 1200@60Hz3
- Supports widescreen resolutions
- Manufacturer
- ATEN
- Part number
- CS17916
- Condition
- New
- Category
- Input & Output Devices › Switches & Hubs
- 1GPA category
- Hardware
Overview

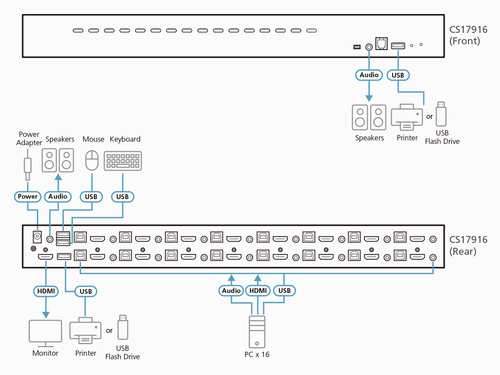

The CS17916 16-port USB HDMI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 16 HDMI computers from a single USB keyboard, USB mouse, and monitor console. The CS17916 can be cascaded up to two levels – up to 256 computers – all from a single console.
In addition, the CS17916 features multi-display functionality, which enables the use of standard USB cables to stack up to 8 switches in a multi-display installation where each computer is fitted with multiple video cards. It allows users to contrast, analyze and monitor video output in convenient ways, substantially simplifying the working environment.
The CS17916 supporting ATEN’s on-screen display (OSD) function, allowing it to access any computer connected to the installation, which offers OSD configuration backup / restore functions to save or back up the OSD settings and restore them as needed. The CS17916 provides multimedia keyboard support and is audio enabled. Users can listen to the audio output of each computer on two sets of speakers (on a one at- a-time basis).
Specifications
| Number of computers controlled | 256 |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 2 |
| Console ports | 3.5mm headphone, HDMI, USB A |
| Console USB ports quantity | 2 |
| USB connector type | USB Type-A |
| Audio connections | Yes |
| DC-in jack | Yes |
| HD type | WUXGA |
|---|---|
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,255 s |
| HDCP | Yes |
| Hot-Plug support | Yes |
| Firmware upgradeable | Yes |
| Rack mounting | Yes |
|---|---|
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Metal |
| Cascadable | Yes |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Keyboard language | Chinese Traditional, English, French, German, Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Swiss, UK English, US English |
| Built-in display | No |
|---|---|
| On Screen Display (OSD) | Yes |
| Power source | DC |
|---|---|
| Input voltage | 5 V |
| Power consumption (typical) | 12.2 W |
| Windows operating systems supported | Yes |
|---|---|
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | Yes |
| Compliance certificates | RoHS |
|---|
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 432.4 mm |
|---|---|
| Depth | 257.2 mm |
| Height | 44 mm |
| Weight | 3.86 kg |
| Cables included | KVM |
|---|---|
| Quick installation guide | Yes |
| Rack mount kit | Yes |
