ATEN CS1788 KVM switch Rack mounting Black

Part number CS1788

8PORT DUAL LINK USB DVI-I HDB-15 CS1788 KVM AUDIO SUP TAA

One USB console controls eight Dual Link DVI or VGA computers and two additional USB 2.0 devices
Supports a digital (DVI) or analog (VGA) video output
Cascadable to three levels – control up to 512 computers
Multi-Display feature – stack up to four CS1788 units and display video from up to four monitors (dual display / triple display / quad display)
2-port USB 2.0 hub built in
Fully compliant with the USB 2.0 specification
Computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD)
OSD Backup/Restore feature – enables the administrator to back up the switch’s configuration and user profile information
Two-level (Administrator/User) password authorization for enhanced security protection
Multilingual OSD supports English, German, Japanese, Traditional Chinese, Simplified Chinese, Spanish, Russian, and French
Audio enabled – full bass response provides a rich experience for 2.1 channel surround sound Systems

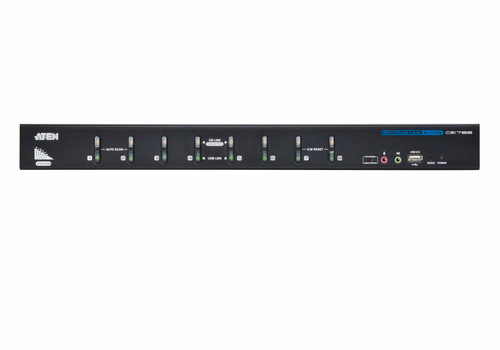

Console audio ports on front panel for easy access

Manufacturer: ATEN
Part number: CS1788
Condition: New
Category: Input & Output Devices › Switches & Hubs
1GPA category: Hardware

Overview

The CS1788 8-Port USB DVI Dual Link KVM Switch is a multi-purpose appliance that consolidates access and control of up to 8 computers from a single USB keyboard, USB mouse, and dual-monitor (DVI-I and VGA) console.

It can be cascaded to three levels – allowing up to 73 CS1788s to control up to 512 computers – all from the original single console, making it ideal for IT applications and management.

In addition, the CS1788 features multi-display functionality, which enables the use of standard USB cables to stack up to four switches for quad-displaying in multiple-monitor installations where each computer is fitted with multiple video cards. It allows you to contrast, analyse and monitor video output in convenient ways, substantially simplifying the working environment.

Furthermore, the CS1788 comes with ATEN´s on-screen display (OSD) function, which can access any computer connected to the installation, it also offers OSD configuration back up/restore to save/ back up the OSD settings and restore them as needed.

The CS1788 provides multimedia keyboard support and is audio enabled. Two microphones can provide audio input to each of the computers, and you can listen to the audio output of each computer on two sets of speakers (on a one-at-a-time basis).

Specifications

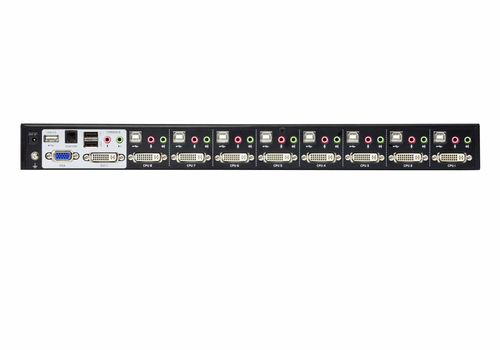

Ports & interfaces
Number of computers controlled	512
Keyboard port type	USB
Mouse port type	USB
Video port type	VGA/DVI-I
DVI-I ports quantity	9
VGA (D-Sub) ports quantity	1
Console ports	3.5mm headphone, 3.5mm mic, DVI-I, USB A, VGA (D-Sub)
Console USB ports quantity	2
USB 2.0 ports quantity	10
USB connector type	USB Type-A
Audio connections	Yes
Headphone outputs	8
DC-in jack	Yes

Performance
Maximum resolution	2560 x 1600 pixels
Video bandwidth	60 Hz
Scan interval	1,255 s
HDCP	Yes
Firmware upgradeable	Yes

Design
Rack mounting	Yes
Rack capacity	1U
Product colour	Black
Housing material	Metal
Cascadable	Yes
LED indicators	Yes
Push button	Yes
Hot keys	Yes

Display
Built-in display	No
On Screen Display (OSD)	Yes

Power
Power source	DC
Input voltage	5.3 V
Power consumption (typical)	6.47 W

System requirements
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Other operating systems supported	Yes

Sustainability
Compliance certificates	RoHS

Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%

Weight & dimensions
Width	437.2 mm
Depth	161.2 mm
Height	44 mm
Weight	2.8 kg

Packaging content
Cables included	KVM
Manual	Yes
AC adapter included	Yes
Rack mount kit	Yes

Logistics data
Harmonized System (HS) code	85176200
