ATEN AT-CS1782A
Part number CS1782A
2PORT DUAL LINK USB DVI CS1782A KVM 2X CUSTOM DVI-D KVM CABLE
- 2-port DVI KVMP Switch with USB 2.0 and 7.1 Surround Sound Audio
- One USB console controls two computers and two additional USB devices
- 2-port built in USB 2.0 hub fully compliant with the USB 2.0 specification
- Full bass response for high quality 7.1 channel surround sound systems
- Computer selection via font panel pushbuttons, hotkeys, and mouse NEW!
- Multiplatform support – Windows, Linux, Mac, and Sun*
- Independent switching of KVM, USB, and Audio focus
- DVI digital and analog monitor support – fully compliant with the DVI specifications
- Superior video quality: 1920 x 1200 @ 60Hz (Single Link); 2560 x 1600 @ 60Hz (Dual Link)
- nVidia 3D Vision Ready: Works with 120Hz LCD monitors and active shutter glasses to create a 3D environment with maximum resolution of up to 1920 x 1080
- HDCP compatible
- Support widescreen resolutions
- Manufacturer
- ATEN
- Part number
- CS1782A
- Condition
- New
- Category
- Input & Output Devices › Switches & Hubs
- 1GPA category
- Hardware
Overview

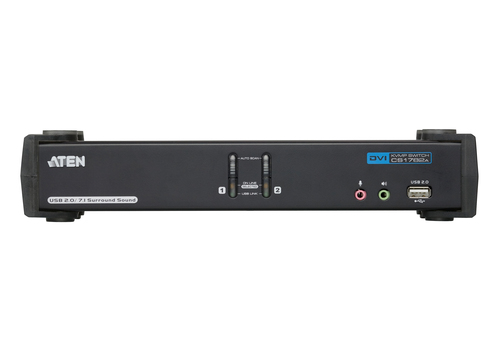

The CS1782A USB DVI Dual Link KVMP™ Switch charts a revolutionary direction in KVM switch functionality. It combines the capabilities of a 2-port KVM switch with a 2-Port USB hub, while providing a DVI monitor interface and audio support. Moreover it carries advanced features, such as nVidia 3D Vision ready 120Hz 3D display support, gaming keyboard compatibility and port selection/switching using a mouse, aimed at giving you flexibility, convenience and enjoyment.
Specifications
| Number of computers controlled | 2 |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-I |
| DVI-I ports quantity | 3 |

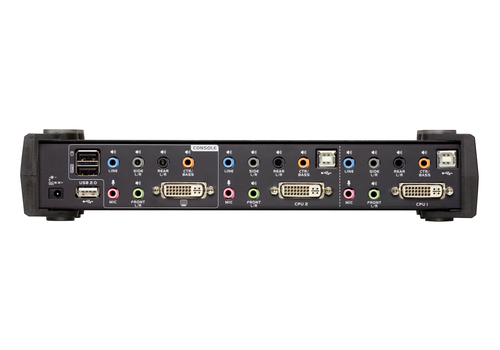

| Console ports | 3.5mm headphone, 3.5mm mic, DVI-I, USB A |
| Console USB ports quantity | 3 |
| USB hub | Yes |
| USB connector type | USB Type-A |
| USB version | 2.0 |
| Audio connections | Yes |
| Headphone outputs | 2 |
| DC-in jack | Yes |
| Maximum resolution | 2560 x 1600 pixels |
|---|---|
| Scan interval | 1,99 s |
| HDCP | Yes |
| Audio channels | 7.1 |
| Power on detection | Yes |
| Firmware upgradeable | Yes |
| Rack mounting | Yes |
|---|---|
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Built-in display | No |
|---|---|
| On Screen Display (OSD) | No |
| Power source | DC |
|---|---|
| Input voltage | 5.3 V |
| Power consumption (typical) | 9 W |
| Windows operating systems supported | Yes |
|---|---|
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | Yes |
| Compliance certificates | RoHS |
|---|
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 270 mm |
|---|---|
| Depth | 88 mm |
| Height | 55.5 mm |
| Weight | 900 g |
| Cables included | KVM |
|---|---|
| Manual | Yes |
| AC adapter included | Yes |
| Harmonized System (HS) code | 85176200 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
