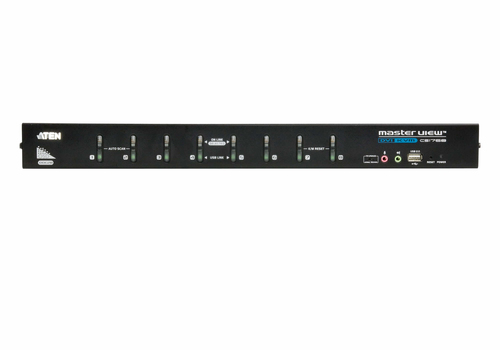

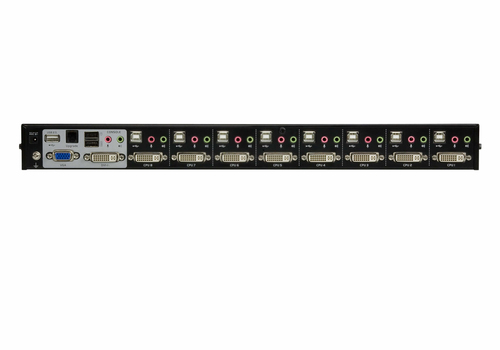

ATEN CS1768 KVM switch Blue

Part number CS1768

8PORT 1CONSOLE USB VGA DVI CS1768 KVM SWITCH W/ AUDIO

One USB console controls eight Single Link DVI or VGA computers and two additional USB 2.0 devices
KVM console supports a digital (DVI-D) or an analog (VGA) video output
Computer ports support digital (DVI) and analog (VGA) video inputs* – mixed operation possible
Cascadable to three levels – control up to 512 computers
Multi-Display mode – stack up to four CS1768 units and display video from up to four monitors (dual display / triple display / quad display)
Computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD)
OSD Backup/Restore function – enables the administrator to back up the switch´s configuration and user profile information
2-port USB 2.0 hub built in
Fully compliant with the USB 2.0 specification
Two-level (Administrator/User) password authorization for enhanced security protection
Multilingual OSD supports English, German, Japanese, Traditional Chinese, Simplified Chinese, Spanish, Russian, and French
Audio enabled – full bass response provides a rich experience for 2.1 channel surround sound systems

Manufacturer: ATEN
Part number: CS1768
Condition: New
Category: Input & Output Devices › Switches & Hubs
1GPA category: Hardware

Overview

The CS1768 8-port USB DVI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 8 computers from a single USB keyboard, USB mouse, and dual-monitor (DVI-I and VGA) console.

It can be cascaded to three levels – allowing up to 73 CS1768s to control up to 512 computers – all from the original single console, making it ideal for industry-grade IT applications and management.

In addition, the CS1768 features multi-display functionality, which enables the use of standard USB cables to stack up to four switches for quad-displaying in multiple-monitor installations where each computer is fitted with multiple video cards. It allows you to contrast, analyse and monitor video output in convenient ways, substantially simplifying the working environment.

Furthermore, the CS1768 comes with ATEN’s on-screen display (OSD) function, which can access any computer connected to the installation, it also offers OSD configuration back up/restore to save/ back up the OSD settings and restore them as needed.

The CS1768 provides multimedia keyboard support and is audio enabled. Two microphones can provide audio input to each of the computers, and you can listen to the audio output of each computer on two sets of speakers (on a one-at-a-time basis).

Specifications

Ports & interfaces
Number of computers controlled	8
Keyboard port type	USB
Mouse port type	USB
Video port type	DVI-I
DVI-I ports quantity	8
VGA (D-Sub) ports quantity	1
USB 2.0 ports quantity	10
Headphone outputs	8
Number of microphone inputs	8

Performance
Maximum resolution	2048 x 1536 pixels
Maximum digital resolution	1920 x 1200 pixels
Maximum analog resolution	2048 x 1536 pixels
Scan interval	255 s

Design
Product colour	Blue
Housing material	Metal
LED indicators	Yes
Certification	TW I220489, CN ZL 02824593.8, DE 202004004227.4, JP 4558319, JP 4651633, TW 203183, TW I220476, TW I285828, US 6934398, US 6957287, US 7047344, US 7269265, US 7340556, US 7472217 RoHS

Power
Power consumption (typical)	3.76 W

Sustainability
Compliance certificates	RoHS

Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%

Weight & dimensions
Width	161.1 mm
Depth	437.2 mm
Height	44 mm
Weight	2.8 kg

Packaging content
Cables included	KVM
Quick installation guide	Yes
Manual	Yes
AC adapter included	Yes

Other features
Connectivity technology	Wired
Ports quantity	8
Compatible operating systems	Windows, Linux, Mac, Sun

Logistics data
Harmonized System (HS) code	85176200
