ATEN CS1764A KVM switch Black

Overview

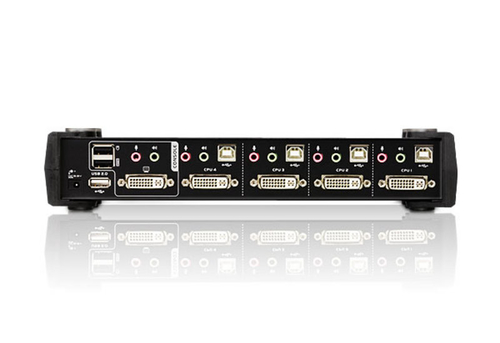

The CubiQ™ CS1764A USB 2.0 DVI KVMP™ Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 4 port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI).

In addition, the CS1764A comes with ATEN's new Video DynaSync™ technology, which optimizes display resolution, and power on detection, which means if one computer is powered off, the CS1764A will automatically switch to the next powered-on computer.

As a KVM switch, it allows users to access four computers from a single USB keyboard, USB mouse, and monitor console. As a USB 2.0 hub, it permits each computer to access any peripherals connected to the hub on a 'one computer at a time' basis.

Features:

-One USB console controls four DVI computers and two additional USB 2.0 devices

-2-port USB 2.0 hub built in

-Fully compliant with the USB 2.0 specification

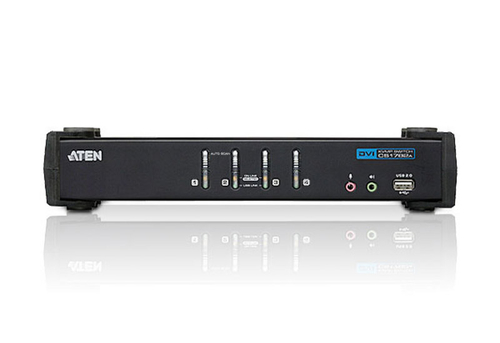

-Computer selection via front panel pushbuttons and hotkeys

-Audio enabled - full bass response provides a rich experience for 2.1 channel surround sound systems

-Multiplatform support - Windows, Linux, Mac and Sun

-Superior video quality - 1920 x 1200, 60Hz; DDC2B

-Independent switching of KVM, USB, and Audio focus

-DVI digital and analog monitor support - fully compliant with the DVI specifications

-HDCP compliant

-Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution

-Power on detection - if one computer is powered off, the CS1764A will automatically switch to the next powered-on computer

-Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice

-Sun /Mac keyboard support and emulation*

-Auto Scan Mode for monitoring all computers

-Firmware upgradable via USB

* 1. PC keyboard combinations emulate Sun/Mac keyboards

2. Sun/Mac keyboards only work with their own computers

Package Contents

1x CS1764A USB 2.0 DVI KVMP™ Switch

4x KVM Cable (DVI-D, USB, Audio; 1.8m/6ft)

1x Power Adapter

1x User Manual

1x Quick Start Guide
