ATEN CS1762A KVM switch Black
Part number CS1762A
2PORT DVI KVMP WITH USB 2.0 PERIPHERAL SHARING
- One USB console controls two DVI computers and two additional USB 2.0 devices
- 2-port USB 2.0 hub built in
- Fully compliant with the USB 2.0 specification

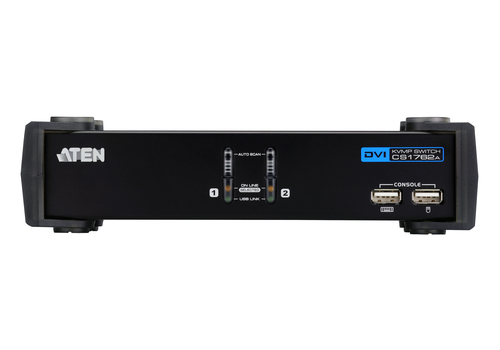

- Computer selection via front panel pushbuttons, hotkeys, and mouse
- Audio enabled – full bass response provides a rich experience for 2.1 channel surround sound systems
- Multiplatform support – Windows, Linux, Mac, and Sun
- Supports widescreen resolutions
- Superior video quality – 1920 x 1200
- Independent switching of KVM, USB, and Audio focus
- DVI digital and analog monitor support – fully compliant with the DVI specifications
- HDCP compatible
- Video DynaSync™ – exclusive ATEN technology optimizes display resolution and eliminates boot-up display problems
- Manufacturer
- ATEN
- Part number
- CS1762A
- Condition
- New
- Category
- Input & Output Devices › Switches & Hubs
Overview
The CubiQ™ CS1762A USB 2.0 DVI KVMP™ Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 2 port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI).
In addition, the CS1762A comes with ATEN's new Video DynaSync™ technology, which optimizes display resolution, and power on detection, which means if one computer is powered off, the CS1762A will automatically switch to the next powered-on computer.
As a KVM switch, it allows users to access two computers from a single USB keyboard, USB mouse, and monitor console. As a USB 2.0 hub, it permits each computer to access any peripherals connected to the hub on a 'one computer at a time' basis.
Specifications
| Number of computers controlled | 2 |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-I |
| DVI-I ports quantity | 1 |

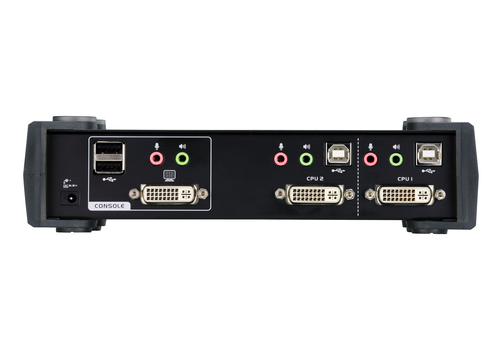

| Console ports | 3.5mm headphone, 3.5mm mic, DVI-I, USB A |
| USB hub | Yes |
| USB connector type | USB Type-A, USB Type-B |
| USB version | 2.0 |
| Audio connections | Yes |
| Headphone outputs | 2 |
| Number of microphone inputs | 1 |
| DC-in jack | Yes |
| HD type | WUXGA |
|---|---|
| Maximum resolution | 1920 x 1200 pixels |
| Scan interval | 1,99 s |
| HDCP | Yes |
| Power on detection | Yes |
| Rack mounting | No |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Built-in display | No |
|---|---|
| On Screen Display (OSD) | No |
| Power source | DC |
|---|---|
| Input voltage | 5.3 V |
| Power consumption (typical) | 9 W |
| Windows operating systems supported | Yes |
|---|---|
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | Yes |
| Compliance certificates | RoHS |
|---|
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 210 mm |
|---|---|
| Depth | 88 mm |
| Height | 55.5 mm |
| Weight | 730 g |
| Cables included | KVM |
|---|---|
| Quick installation guide | Yes |
| Manual | Yes |
| AC adapter included | Yes |
| Harmonized System (HS) code | 85176200 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
